LM393AM - Dual Differential Comparator

Download the LM393AM datasheet PDF. This datasheet also covers the LM393 variant, as both devices belong to the same dual differential comparator family and are provided as variant models within a single manufacturer datasheet.

Description

The LM2903, LM393/LM393A, LM293A consist of two independent voltage comparators designed to operate from a single power supply over a wide voltage range.

Features

  • Single Supply Operation: 2V to 36V.
  • Dual Supply Operation: 1V to 18V.
  • Allow Comparison of Voltages Near Ground Potential.
  • Low Current Drain 800A Typ.
  • Compatible with all Forms of Logic.
  • Low Input Bias Current 25nA Typ.
  • Low Input Offset Current 5nA Typ.
  • Low Offset Voltage 1mV Typ.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM393-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM393A Low power dual voltage comparator NXP
LM393A Dual Differential Comparators Texas Instruments
LM393A 36V Low Power Comparators 3PEAK
LM393AP Dual Differential Comparators Texas Instruments
LM393 SINGLE SUPPLY/ LOW POWER DUAL COMPARATORS Motorola Inc

Other Datasheets by Fairchild (onsemi)

Part Number Description
LM393AMX Dual Differential Comparator
LM393A Dual Differential Comparator
LM393AN Dual Differential Comparator
LM393 Dual Differential Comparator
LM393M Dual Differential Comparator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

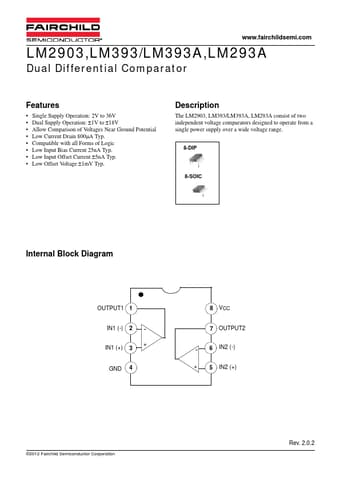

www.fairchildsemi.com LM2903,LM393/LM393A,LM293A Dual Differential Comparator Features • Single Supply Operation: 2V to 36V • Dual Supply Operation: 1V to 18V • Allow Comparison of Voltages Near Ground Potential • Low Current Drain 800A Typ. • Compatible with all Forms of Logic • Low Input Bias Current 25nA Typ. • Low Input Offset Current 5nA Typ. • Low Offset Voltage 1mV Typ. Description The LM2903, LM393/LM393A, LM293A consist of two independent voltage comparators designed to operate from a single power supply over a wide voltage range. 8-DIP 1 8-SOIC 1 Internal Block Diagram OUTPUT1 1 IN1 (-) 2 - IN1 (+) 3 + GND 4 8 VCC 7 OUTPUT2 - 6 IN2 (-) + 5 IN2 (+) ©2012 Fairchild Semiconductor Corporation Rev. 2.0.
