LM2597HV, LM2597 - 0.5-A Step-Down Voltage Regulator

Name: LM2597HV
SKU: LM2597HV-1492235

Texas Instruments

📥 Download Datasheet

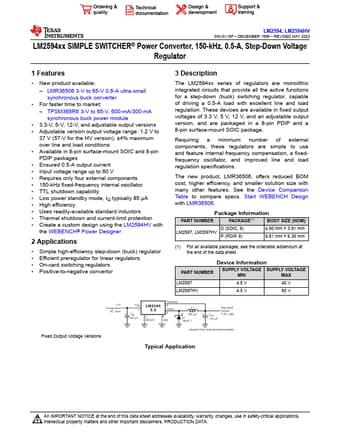

LM2597HV Datasheet Preview — This datasheet PDF includes multiple part numbers: LM2597HV, LM2597. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LM2597HV, LM2597
Manufacturer	Texas Instruments
File Size	2.20 MB
Description	0.5-A Step-Down Voltage Regulator
Datasheet	LM2597-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM2597HV, LM2597. Please refer to the document for exact specifications by model.

LM2597HV Product details

Description

The LM2594xx series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 0.5-A load with excellent line and load regulation.

Features

New product available:.
LMR36506 3-V to 65-V 0.6-A ultra-small synchronous buck converter.
For faster time to market:.
TPSM365R6 3-V to 65-V, 600-mA/300-mA synchronous buck power module.
3.3-V, 5-V, 12-V, and adjustable output versions.
Adjustable version output voltage range: 1.2 V to 37 V (57-V for the HV version), ±4% maximum over line and load conditions.
Available in 8-pin surface-mount SOIC and 8-pin PDIP packages.
En.
