LM2594HV, LM2594 - 0.5-A Step-Down Voltage Regulator

Name: LM2594HV
SKU: LM2594HV-1492232

Texas Instruments

📥 Download Datasheet

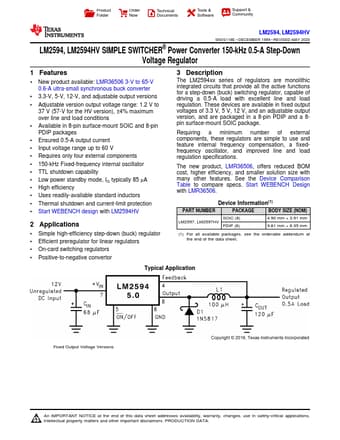

LM2594HV Datasheet Preview — This datasheet PDF includes multiple part numbers: LM2594HV, LM2594. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LM2594HV, LM2594
Manufacturer	Texas Instruments
File Size	2.40 MB
Description	0.5-A Step-Down Voltage Regulator
Datasheet	LM2594-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM2594HV, LM2594. Please refer to the document for exact specifications by model.

LM2594HV Product details

Description

The LM2594xx series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 0.5-A load with excellent line and load regulation.

Features

1 New product available: LMR36506 3-V to 65-V 0.6-A ultra-small synchronous buck converter.
3.3-V, 5-V, 12-V, and adjustable output versions.
Adjustable version output voltage range: 1.2 V to 37 V (57-V for the HV version), ±4% maximum over line and load conditions.
Available in 8-pin surface-mount SOIC and 8-pin PDIP packages.
Ensured 0.5-A output current.
Input voltage range up to 60 V.
Requires only four external components.
