LM195QML-SP, LM195QML Ultra Reliable Power Transistors

LM195QML-SP Description

LM195QML, LM195QML-SP www.ti.com SNLS194A * NOVEMBER 2010 * REVISED MARCH 2013 LM195QML Ultra Reliable Power Transistors .
The LM195 is a fast, monolithic power integrated circuit with complete overload protection.

LM195QML-SP Features

* 1
* 2 Internal Thermal Limiting
* Greater Than 1.0A Output Current
* 3.0 μA Typical Base Current
* 500 ns Switching Time
* 2.0V Saturation
* Base Can be Driven up to 40V Without Damage
* Directly Interfaces with CMOS or TTL
* 100% Electr

LM195QML-SP Applications

* where protection is unusually difficult, such as switching regulators, lamp or solenoid drivers where normal power dissipation is low, the LM195 is especially advantageous. The LM195 is easy to use and only a few precautions need be observed. Excessive collector to emitter voltage can destroy the L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM195QML-SP, LM195QML. Please refer to the document for exact specifications by model.

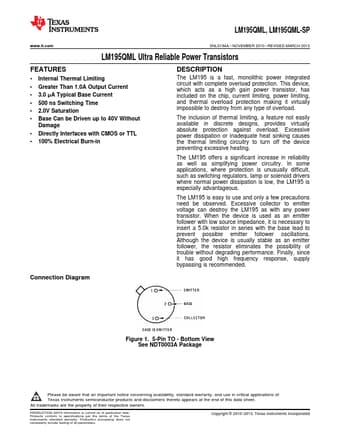

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM195QML-SP, LM195QML
Manufacturer
Texas Instruments ↗
File Size
906.54 KB
Datasheet
LM195QML-etcTI.pdf
Description
Ultra Reliable Power Transistors
Note
This datasheet PDF includes multiple part numbers: LM195QML-SP, LM195QML.
Please refer to the document for exact specifications by model.
