LM195QML Ultra Reliable Power Transistors

LM195QML Description

LM195QML, LM195QML-SP www.ti.com SNLS194A * NOVEMBER 2010 * REVISED MARCH 2013 LM195QML Ultra Reliable Power Transistors .
The LM195 is a fast, monolithic power integrated circuit with complete overload protection.

LM195QML Features

* 1
* 2 Internal Thermal Limiting
* Greater Than 1.0A Output Current
* 3.0 μA Typical Base Current
* 500 ns Switching Time
* 2.0V Saturation
* Base Can be Driven up to 40V Without Damage
* Directly Interfaces with CMOS or TTL
* 100% Electr

LM195QML Applications

* where protection is unusually difficult, such as switching regulators, lamp or solenoid drivers where normal power dissipation is low, the LM195 is especially advantageous. The LM195 is easy to use and only a few precautions need be observed. Excessive collector to emitter voltage can destroy the L

📥 Download Datasheet

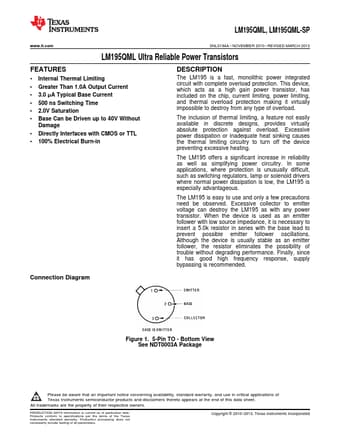

Preview of LM195QML PDF
datasheet Preview Page 2 datasheet Preview Page 3
