ISO7761-Q1, ISO7760-Q1 reinforced six-channel digital isolators

ISO7761-Q1 Description

ISO7760-Q1, ISO7761-Q1, ISO7762-Q1, ISO7763-Q1 SLLSEU7E * NOVEMBER 2018 * REVISED JULY 2024 ISO776x-Q1 High-speed, Robust EMC, Reinfor.
The ISO776x-Q1 devices are high-performance, sixchannel digital isolators with 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation ratings per.

ISO7761-Q1 Applications

* AEC-Q100 qualified with the following results:
* Device temperature grade 1:
* 40°C to +125°C ambient temperature range
* Device HBM ESD classification level 3A
* Device CDM ESD classification level C6
* Functional Safety-Capable
* Documentati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO7761-Q1, ISO7760-Q1. Please refer to the document for exact specifications by model.

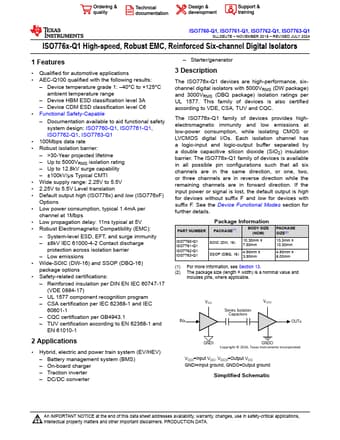

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO7761-Q1, ISO7760-Q1
Manufacturer
Texas Instruments ↗
File Size
2.28 MB
Datasheet
ISO7760-Q1-etcTI.pdf
Description
reinforced six-channel digital isolators
Note
This datasheet PDF includes multiple part numbers: ISO7761-Q1, ISO7760-Q1.
Please refer to the document for exact specifications by model.
