ISO7741-Q1, ISO7740-Q1 - Robust-EMC Reinforced Quad-Channel Digital Isolators

ISO7741-Q1 Description

ISO7740-Q1, ISO7741-Q1, ISO7742-Q1 SLLSEU0G * NOVEMBER 2016 * REVISED OCTOBER 2024 ISO774x-Q1 Automotive, High-Speed, Reinforced Quad-.
The ISO774x-Q1 automotive devices are highperformance, quad-channel digital isolators with 5700VRMS (DWW package), 5000VRMS (DW package) and 3000VRMS.

ISO7741-Q1 Applications

* AEC-Q100 qualified with the following results:
* Device temperature Grade 1:
* 40°C to 125°C ambient operating temperature
* Functional Safety-Capable
* Documentation available to aid functional safety system design: ISO7740-Q1, ISO7741-Q1, ISO7742-Q1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO7741-Q1, ISO7740-Q1. Please refer to the document for exact specifications by model.

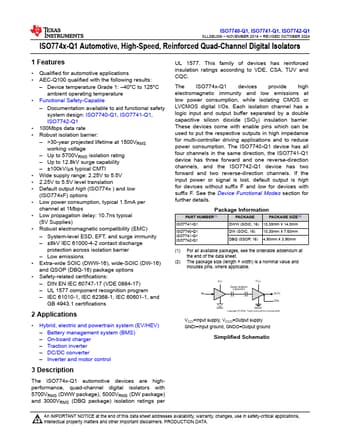

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO7741-Q1, ISO7740-Q1
Manufacturer
Texas Instruments ↗
File Size
2.47 MB
Datasheet
ISO7740-Q1-etcTI.pdf
Description
Robust-EMC Reinforced Quad-Channel Digital Isolators
Note
This datasheet PDF includes multiple part numbers: ISO7741-Q1, ISO7740-Q1.
Please refer to the document for exact specifications by model.
