ISO7330C - Triple-Channel Digital Isolators

Texas Instruments

📥 Download Datasheet

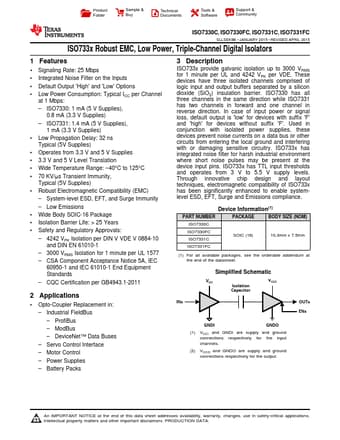

ISO7330C Datasheet Preview — Preview of ISO7330C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISO7330C
Manufacturer	Texas Instruments
File Size	2.00 MB
Description	Triple-Channel Digital Isolators
Datasheet	ISO7330C-etcTI.pdf

ISO7330C Product details

Description

ISO733x provide galvanic isolation up to 3000 VRMS for 1 minute per UL and 4242 VPK per VDE.

Features

1 Signaling Rate: 25 Mbps.
Integrated Noise Filter on the Inputs.
Default Output 'High' and 'Low' Options.
Low Power Consumption: Typical ICC per Channel at 1 Mbps:.
ISO7330: 1 mA (5 V Supplies), 0.8 mA (3.3 V Supplies).
ISO7331: 1.4 mA (5 V Supplies), 1 mA (3.3 V Supplies).
Low Propagation Delay: 32 ns Typical (5V Supplies).
Operates from 3.3 V and 5 V Supplies.
3.3 V and 5 V Level Translation.
Wide Temper.
