ISO7310FC, ISO7310C - Single Channel Digital Isolator

ISO7310FC Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7310C, ISO7310FC SLLSEI8D * JUNE 2014 * R.
ISO7310x provide galvanic isolation up to 3000 VRMS for 1 minute per UL and 4242 VPK per VDE.

ISO7310FC Features

* 1 Signaling Rate: 25 Mbps
* Integrated Noise Filter at the Input
* Default Output 'High' and 'Low' Options
* Low Power Consumption: Typical ICC
* 1.9 mA at 1 Mbps, 3.8 mA at 25 Mbps (5V Supplies)
* 1.4 mA at 1 Mbps, 2.6 mA at 25 Mbps (3.3V Supplies)

ISO7310FC Applications

* Opto-Coupler Replacement in:
* Industrial FieldBus
* ProfiBus
* ModBus
* DeviceNet™ Data Buses
* Servo Control Interface
* Motor Control
* Power Supplies

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO7310FC, ISO7310C. Please refer to the document for exact specifications by model.

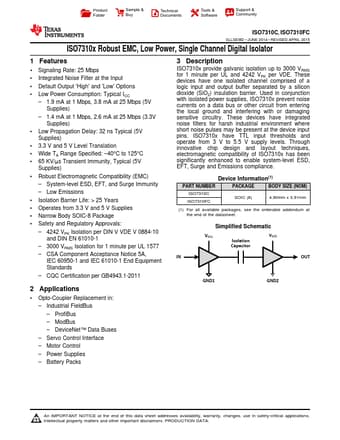

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO7310FC, ISO7310C
Manufacturer
Texas Instruments ↗
File Size
1.37 MB
Datasheet
ISO7310C-etcTI.pdf
Description
Single Channel Digital Isolator
Note
This datasheet PDF includes multiple part numbers: ISO7310FC, ISO7310C.
Please refer to the document for exact specifications by model.
