ISO7220A-Q1 DUAL DIGITAL ISOLATORS

ISO7220A-Q1 Description

ISO7220A-Q1 ISO7221A-Q1 ISO7221C-Q1 SLLS965D * JULY 2009 * REVISED APRIL 2020 DUAL DIGITAL ISOLATORS 1 1 .
40°C to 125°C Operating Free-Air Temperature Range The ISO7220 and ISO7221 are dual-channel digital isolators.

ISO7220A-Q1 Applications

* 1-Mbps and 25-Mbps Signaling Rate Options
* Low Channel-to-Channel Output Skew: 1 ns (Max)
* 4000-Vpeak Isolation, 560 Vpeak VIORM
* UL 1577, DIN VDE V 0884-11:2017-01, DIN EN 61010-1, IEC 60950-1, IEC 62368-1 and CSA Approved
* Low Pulse-Width Distortion

📥 Download Datasheet

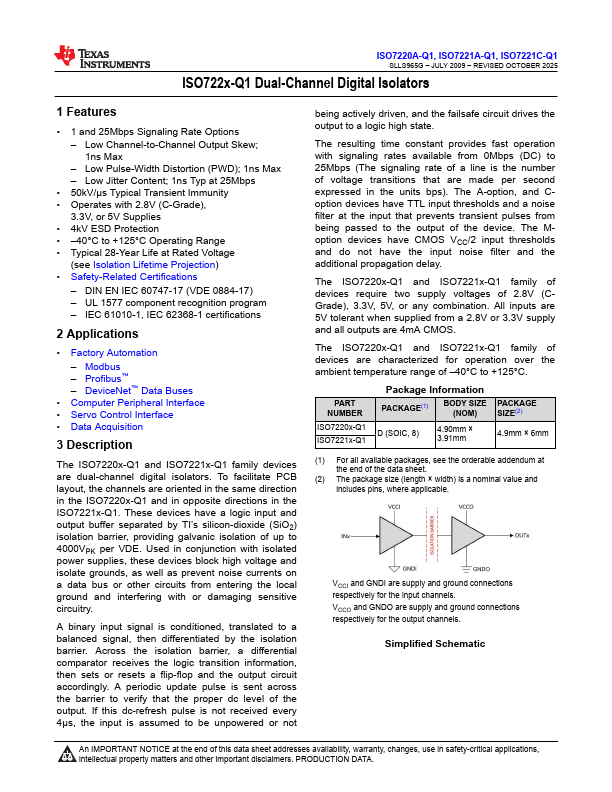

Preview of ISO7220A-Q1 PDF

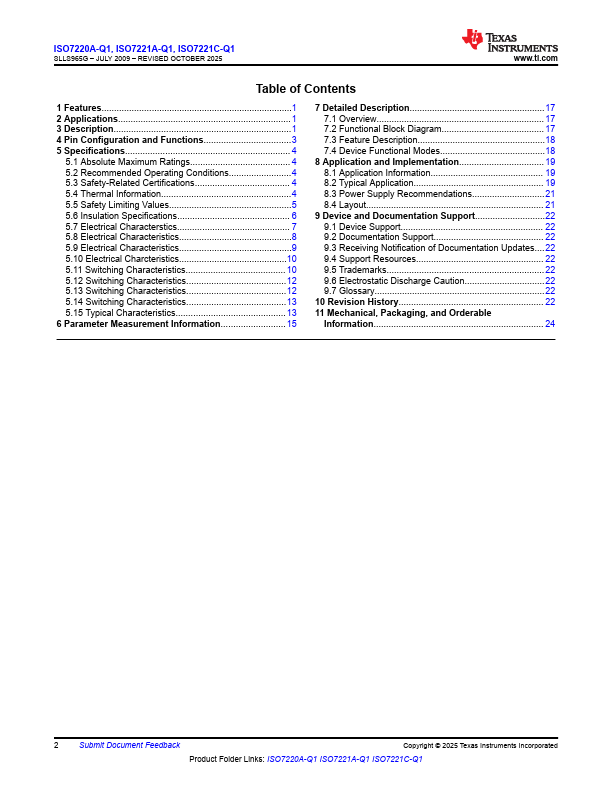

datasheet Preview Page 2 datasheet Preview Page 3
