ISO7131CC Small-Footprint Low-Power Triple and Quad Channels Digital Isolators

ISO7131CC Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7131CC, ISO7140CC, ISO7140FCC, ISO7141CC, ISO7141FCC SLLS.
ISO7131, ISO7140, and ISO7141 devices provide galvanic isolation up to 2500 VRMS for 1 minute per UL and 4242 VPK per VDE.

ISO7131CC Features

* 1 Maximum Signaling Rate: 50 Mbps (With 5-V Supplies)
* Robust Design With Integrated Noise Filter
* Default Output Low Option (Suffix F)
* Low Power Consumption, Typical ICC per Channel (With 3.3-V Supplies):
* ISO7131: 1.5 mA at 1 Mbps, 2.6 mA at 25 Mbps

ISO7131CC Applications

* General-Purpose Isolation
* Industrial Fieldbus
* Profibus
* Modbus™
* DeviceNet Data Buses
* RS-232, RS-485

📥 Download Datasheet

Preview of ISO7131CC PDF

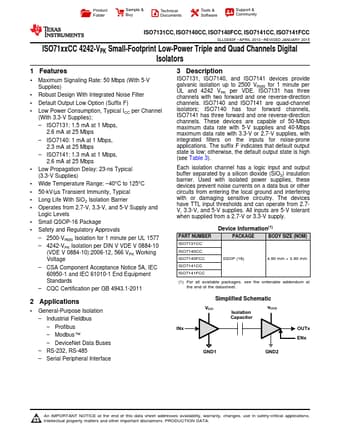

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO7131CC
Manufacturer
Texas Instruments ↗
File Size
1.46 MB
Datasheet
ISO7131CC-etcTI.pdf
Description
Small-Footprint Low-Power Triple and Quad Channels Digital Isolators
