ISO6761F, ISO6760 General-Purpose Six-Channel Reinforced Digital Isolators

ISO6761F Description

ISO6760, ISO6761, ISO6762, ISO6763 SLLSFK0E * AUGUST 2021 * REVISED FEBRUARY 2023 ISO676x General-Purpose Six-Channel Reinforced Digit.
The ISO676x devices are high-performance, sixchannel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation rati.

ISO6761F Features

* 50 Mbps data rate
* Robust isolation barrier:
* High lifetime at 1500 VRMS working voltage
* Up to 5000 VRMS isolation rating
* Up to 10 kV surge capability
* ±150 kV/μs typical CMTI
* Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V

ISO6761F Applications

* Power supplies
* Grid, Electricity meter
* Motor drives
* Factory automation
* Building automation
* Lighting
* Appliances VCCI VCCO Series Isolation Capacitors INx OUTx GNDI GNDO Copyright © 2016, Texas Instruments Incorporated VCCI=

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO6761F, ISO6760. Please refer to the document for exact specifications by model.

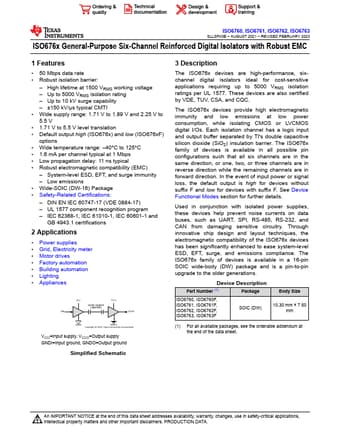

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO6761F, ISO6760
Manufacturer
Texas Instruments ↗
File Size
2.95 MB
Datasheet
ISO6760-etcTI.pdf
Description
General-Purpose Six-Channel Reinforced Digital Isolators
Note
This datasheet PDF includes multiple part numbers: ISO6761F, ISO6760.
Please refer to the document for exact specifications by model.
