ISO6742, ISO6740 General-Purpose Reinforced Quad-Channel Digital Isolators

ISO6742 Description

ISO6740, ISO6741, ISO6742 SLLSFJ6G * DECEMBER 2019 * REVISED FEBRUARY 2023 ISO674x General-Purpose Reinforced Quad-Channel Digital Iso.
The ISO674x devices are high-performance, quadchannel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation rat.

ISO6742 Features

* Functional Safety-Capable
* Documentation available to aid functional safety system design: ISO6740, ISO6741, ISO6742
* 50 Mbps data rate
* Robust isolation barrier:
* High lifetime at 1500 VRMS working voltage
* Up to 5000 VRMS isolation rating

ISO6742 Applications

* Power supplies
* Grid, Electricity meter
* Motor drives
* Factory automation
* Building automation
* Lighting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO6742, ISO6740. Please refer to the document for exact specifications by model.

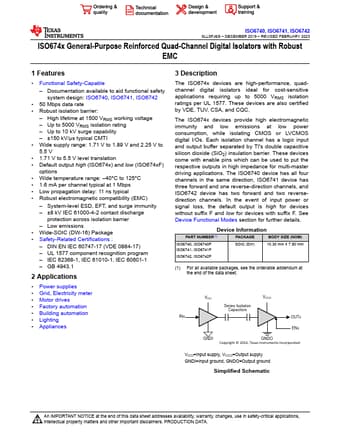

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO6742, ISO6740
Manufacturer
Texas Instruments ↗
File Size
3.36 MB
Datasheet
ISO6740-etcTI.pdf
Description
General-Purpose Reinforced Quad-Channel Digital Isolators
Note
This datasheet PDF includes multiple part numbers: ISO6742, ISO6740.
Please refer to the document for exact specifications by model.
