DS125DF410 - Low Power Multi-Rate Quad-Channel Retimer

Product Overview

Texas Instruments

📥 Download Datasheet

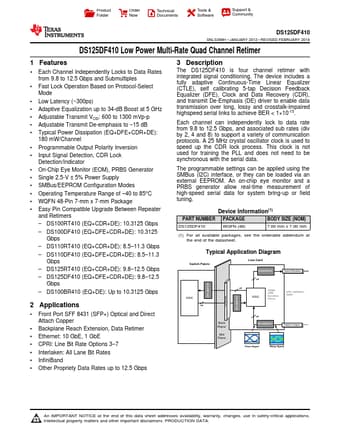

DS125DF410 Low Power Multi-Rate Quad-Channel Retimer by Texas Instruments - Datasheet Preview — Datasheet preview – DS125DF410

Datasheet Details

Part number	DS125DF410
Manufacturer	Texas Instruments
File Size	2.31 MB
Description	Low Power Multi-Rate Quad-Channel Retimer
Datasheet	DS125DF410 Datasheet
Additional preview pages of the DS125DF410 datasheet.

Product details

Description

The DS125DF410 is four channel retimer with integrated signal conditioning.

Features

1 Each Channel Independently Locks to Data Rates from 9.8 to 12.5 Gbps and Submultiples.
Fast Lock Operation Based on Protocol-Select Mode.
Low Latency (~300ps).
Adaptive Equalization up to 34-dB Boost at 5 GHz.
Adjustable Transmit VOD: 600 to 1300 mVp-p.
Adjustable Transmit De-emphasis to.
15 dB.
Typical Power Dissipation (EQ+DFE+CDR+DE): 180 mW/Channel.
Programmable Output Polarity Inversion.
