CSD96497Q5MC Synchronous buck NexFET smart power stage

CSD96497Q5MC Description

Product Folder Order Now Technical Documents Tools & Software Support & Community CSD96497Q5MC SLPS714A * JANUARY 2019 * REVISED .
The CSD96497 NexFET™ power stage is a highly optimized design for use in a high-power, highdensity synchronous buck converter.

CSD96497Q5MC Features

* 1 65-A continuous operating current capability
* Over 93.5% system efficiency at 30 A
* High-frequency operation (up to 1.25 MHz)
* Diode emulation mode with FCCM
* Temperature compensated bi-directional current sense
* Analog temperature output

CSD96497Q5MC Applications

* Multiphase synchronous buck converters
* High-frequency applications
* High-current, low-duty cycle applications
* POL DC-DC converters
* Memory and graphic cards
* Desktop and server VR12.x and VR13.x V-core synchronous buck converters
* Hig

📥 Download Datasheet

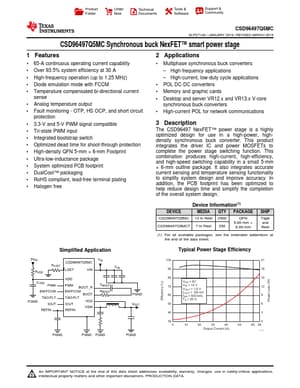

Preview of CSD96497Q5MC PDF
