CD74FCT541 Datasheet (Texas Instruments) - BiCMOS OCTAL BUFFER/DRIVER

CD74FCT541, BiCMOS OCTAL BUFFER/DRIVER

The CD74FCT541 is an octal buffer/driver with 3-state outputs that is ideal for driving bus lines or buffer memory address registers and uses a small-geometry BiCMOS technology.

The output stage is a combination of bipolar and CMOS transistors that limits the output high level to two diode drops bel

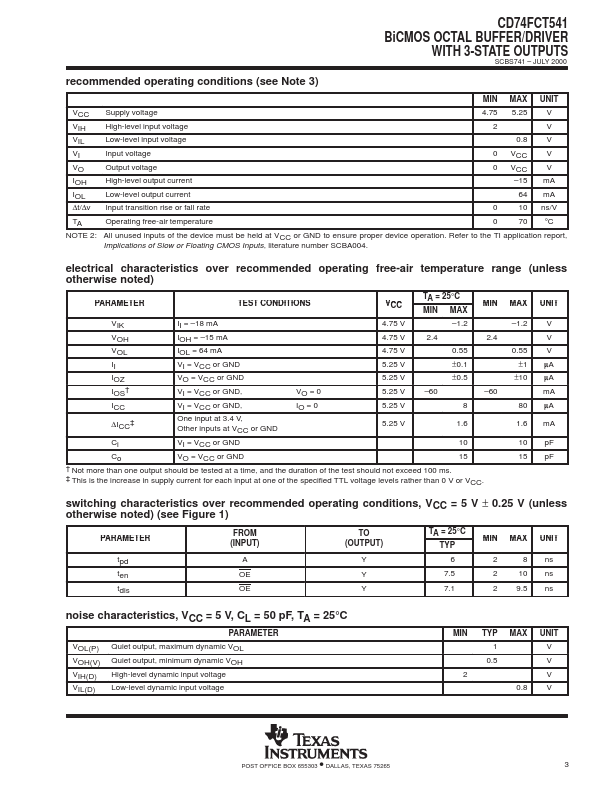

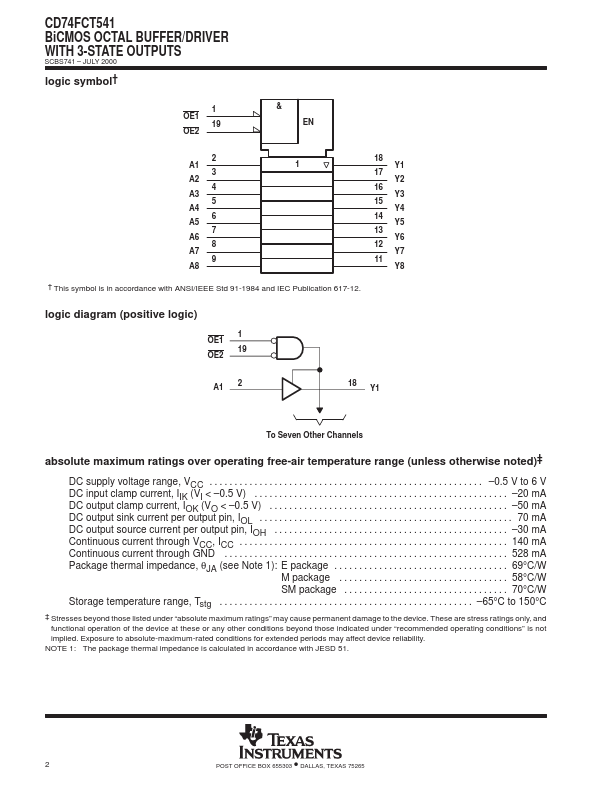

D BiCMOS Technology With Low Quiescent Power D Buffered Inputs D Noninverted Outputs D Input/Output Isolation From VCC D Controlled Output Edge Rates D 64-mA Output Sink Current D Output Voltage Swing Limited to 3.7 V D SCR Latch-Up-Resistant BiCMOS Process and Circuit Design D Package Options Include Plastic Small-Outline (M) and Shrink Small-Outline (SM) Packages and Standard Plastic (E) DIP CD74FCT541 BiCMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS SCBS741 JULY 2000 E, M, OR SM PAC
