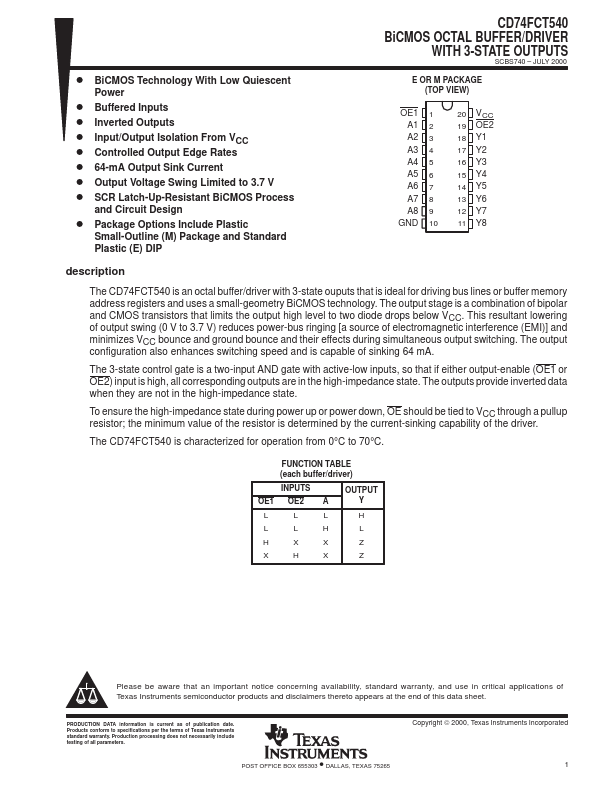

CD74FCT540, BiCMOS OCTAL BUFFER/DRIVER

The CD74FCT540 is an octal buffer/driver with 3-state ouputs that is ideal for driving bus lines or buffer memory address registers and uses a small-geometry BiCMOS technology.

The output stage is a combination of bipolar and CMOS transistors that limits the output high level to two diode drops belo

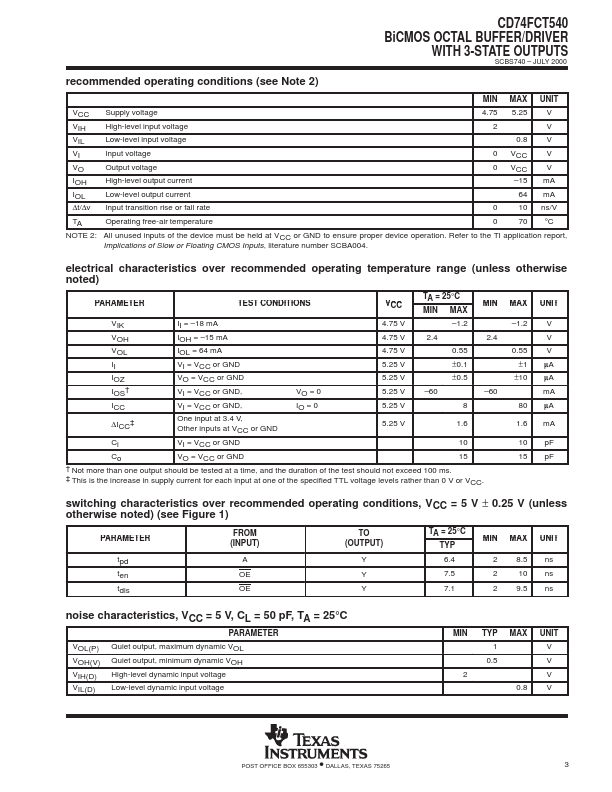

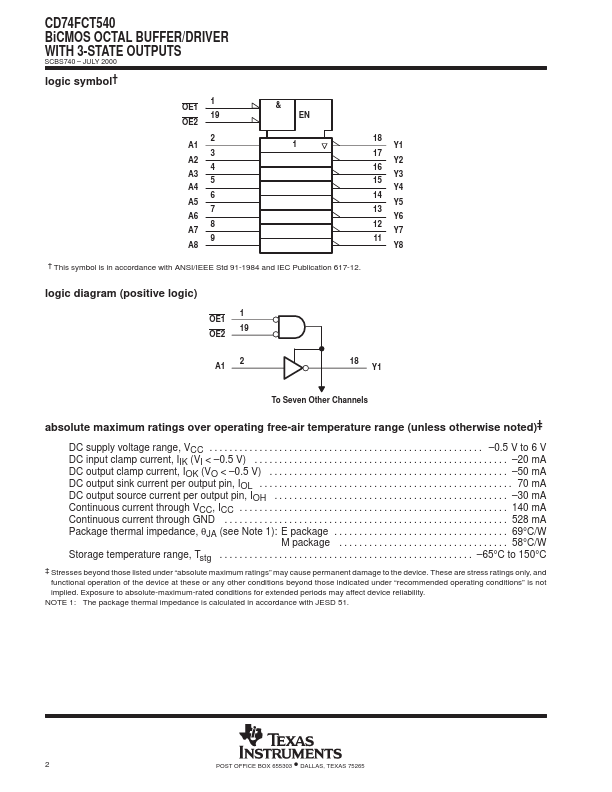

D BiCMOS Technology With Low Quiescent Power D Buffered Inputs D Inverted Outputs D Input/Output Isolation From VCC D Controlled Output Edge Rates D 64-mA Output Sink Current D Output Voltage Swing Limited to 3.7 V D SCR Latch-Up-Resistant BiCMOS Process and Circuit Design D Package Options Include Plastic Small-Outline (M) Package and Standard Plastic (E) DIP CD74FCT540 BiCMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS SCBS740 JULY 2000 E OR M PACKAGE (TOP VIEW) OE1 1 A1 2 A2 3 A3 4 A
