CD54HC251F, CD54HC251 - 8-Input Multiplexer

Texas Instruments

The CD54HC251F by Texas Instruments is a 8-Input Multiplexer. Below is the official datasheet preview.

Datasheet Details

Part number	CD54HC251F, CD54HC251
Manufacturer	Texas Instruments
File Size	0.98 MB
Description	8-Input Multiplexer
Datasheet	CD54HC251-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: CD54HC251F, CD54HC251. Please refer to the document for exact specifications by model.

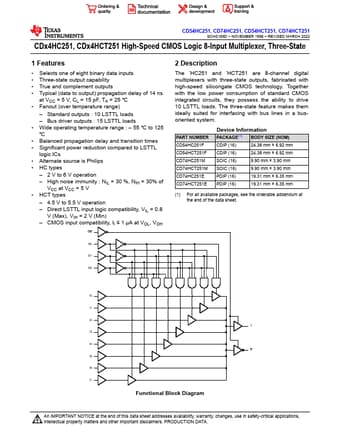

Additional preview pages of the CD54HC251F datasheet.

The ’HC251 and ’HCT251 are 8-channel digital multiplexers with three-state outputs, fabricated with high-speed silicongate CMOS technology.

Selects one of eight binary data inputs.
Three-state output capability.
True and complement outputs.
Typical (data to output) propagation delay of 14 ns at VCC = 5 V, CL = 15 pF, TA = 25 ℃.
Fanout (over temperature range).
Standard outputs : 10 LSTTL loads.
Bus driver outputs : 15 LSTTL loads.
Wide operating temperature range :.
55 ℃ to 125 ℃.
Balanced propagation delay and transition times.
Signi.
