CD54HC21 - Dual 4-Input AND Gates

The CD54HC21 by Texas Instruments is a Dual 4-Input AND Gates. Below is the official datasheet preview.

📥 Download Datasheet

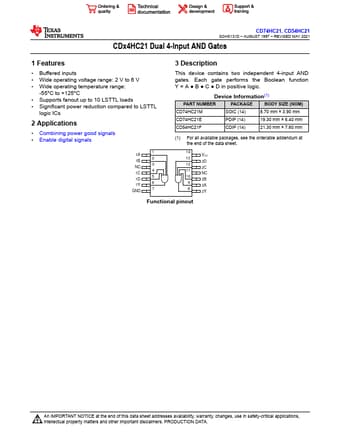

Official preview page of the CD54HC21 Dual 4-Input AND Gates datasheet (Texas Instruments).

Datasheet Details

Part number CD54HC21
Manufacturer Texas Instruments
File Size 1.20 MB
Description Dual 4-Input AND Gates
Datasheet download datasheet CD54HC21-etcTI.pdf
Additional preview pages of the CD54HC21 datasheet.

CD54HC21 Product details

Description

Buffered inputs Wide operating voltage range: 2 V to 6 V Wide operating temperature range: -55°C to +125°C Supports fanout up to 10 LSTTL loads Significant power reduction compared to LSTTL logic ICs 2 Applications Combining power good signals Enable digital signals This device contains two independent 4-input AND gates.Each gate performs the Boolean function Y = A B C D in positive logic.
