ADS131E04 - Delta-Sigma ADC

Product Overview

Texas Instruments

Datasheet Details

Part number	ADS131E04
Manufacturer	Texas Instruments
File Size	1.91 MB
Description	Delta-Sigma ADC
Datasheet	ADS131E04 Datasheet

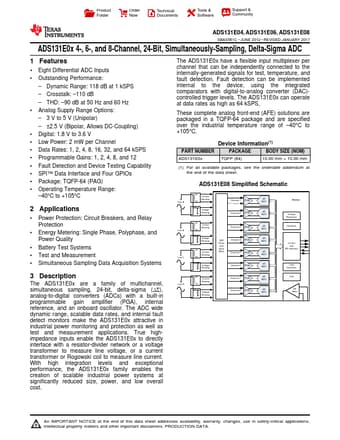

Additional preview pages of the ADS131E04 datasheet.

Product details

Description

The ADS131E0x are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

Features

1 Eight Differential ADC Inputs.
Outstanding Performance:.
Dynamic Range: 118 dB at 1 kSPS.
Crosstalk:.
110 dB.
THD:.
90 dB at 50 Hz and 60 Hz.
Analog Supply Range Options:.
3 V to 5 V (Unipolar).
±2.5 V (Bipolar, Allows DC-Coupling).
Digital: 1.8 V to 3.6 V.
Low Power: 2 mW per Channel.
Data Rates: 1, 2, 4, 8, 16, 32, and 64 kSPS.
Programmable Gains: 1, 2, 4, 8, and 12.
