ADS131E06 - Delta-Sigma ADC

Download the ADS131E06 datasheet PDF. This datasheet also covers the ADS131E04 variant, as both devices belong to the same delta-sigma adc family and are provided as variant models within a single manufacturer datasheet.

Description

The ADS131E0x are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

Features

  • 1 Eight Differential ADC Inputs.
  • Outstanding Performance:.
  • Dynamic Range: 118 dB at 1 kSPS.
  • Crosstalk:.
  • 110 dB.
  • THD:.
  • 90 dB at 50 Hz and 60 Hz.
  • Analog Supply Range Options:.
  • 3 V to 5 V (Unipolar).
  • ±2.5 V (Bipolar, Allows DC-Coupling).
  • Digital: 1.8 V to 3.6 V.
  • Low Power: 2 mW per Channel.
  • Data Rates: 1, 2, 4, 8, 16, 32, and 64 kSPS.
  • Programmable Gains: 1, 2, 4, 8, and 12.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADS131E04-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ADS1000 12-Bit ANALOG-TO-DIGITAL CONVERTER Burr-Brown
ADS105A160S SCRs ADV
ADS1100 16-Bit ANALOG-TO-DIGITAL CONVERTER Burr-Brown Corporation
ADS1110 16-Bit ANALOG-TO-DIGITAL CONVERTER Burr-Brown
ADS1112 16-Bit Analog-to-Digital Converter Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
ADS131E04 Delta-Sigma ADC
ADS131E08 Delta-Sigma ADC
ADS131E08S Analog Front-End
ADS131A02 Delta-Sigma ADC
ADS131A04 Delta-Sigma ADC

Full PDF Text Transcription

Click to expand full text

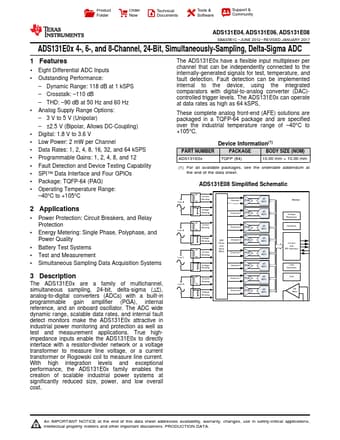

Product Folder Order Now Technical Documents Tools & Software Support & Community ADS131E04, ADS131E06, ADS131E08 SBAS561C – JUNE 2012 – REVISED JANUARY 2017 ADS131E0x 4-, 6-, and 8-Channel, 24-Bit, Simultaneously-Sampling, Delta-Sigma ADC 1 Features •1 Eight Differential ADC Inputs • Outstanding Performance: – Dynamic Range: 118 dB at 1 kSPS – Crosstalk: –110 dB – THD: –90 dB at 50 Hz and 60 Hz • Analog Supply Range Options: – 3 V to 5 V (Unipolar) – ±2.5 V (Bipolar, Allows DC-Coupling) • Digital: 1.8 V to 3.
