74HC148 - 8-Line to 3-Line Priority Encoders

Datasheet Summary

Description

The SNx4HC148 is an 8-input priority encoder.

Added input enable (EI) and output enable (EO) signals allow for cascading multiple stages without added external circuitry.

Features

  • Wide operating voltage range of 2V to 6V.
  • Outputs can drive up to 10 LSTTL loads.
  • Low power consumption, 80-μA max ICC.
  • Typical tpd = 16ns.
  • ±4-mA output drive at 5V.
  • Low input current of 1μA max.
  • Encode eight data lines to 3-line binary (Octal) 2.

📥 Download Datasheet

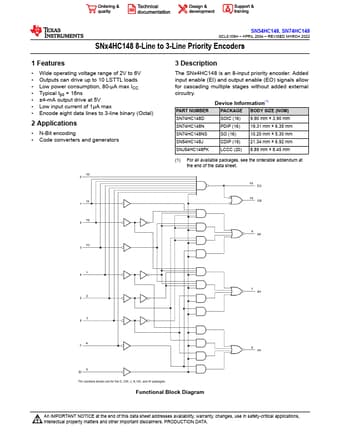

Datasheet preview – 74HC148

Datasheet Details

Part number 74HC148
Manufacturer Texas Instruments
File Size 1.62 MB
Description 8-Line to 3-Line Priority Encoders
Datasheet download datasheet 74HC148 Datasheet
Additional preview pages of the 74HC148 datasheet.

📁 Similar Datasheet

  • 74HC148 - 8-3 Line Priority Encoder (National Semiconductor)
  • 74HC148 - 8-3 Line Priority Encoder (Fairchild)
  • 74HC148 - 8-to-3-line Octal Priority Encoder (Hitachi)
  • 74HC148 - 8 TO 3 LINE PRIORITY ENCODER (STMicroelectronics)
  • 74HC14 - Hex Schmitt-Trigger Inverter (ON Semiconductor)
  • 74HC14 - Hex inverting Schmitt trigger (NXP)
  • 74HC14 - HEX INVERTERS (Diodes)
  • 74HC14 - Hex inverting Schmitt trigger (nexperia)
  • 74HC14-Q100 - Hex inverting Schmitt trigger (NXP)
  • 74HC14-Q100 - Hex inverting Schmitt trigger (nexperia)
Other Datasheets by Texas Instruments
  • 74HC14 - Hex Inverters
  • 74HC147 - High-Speed CMOS Logic
  • 74HC10 - Triple 3-Input NAND Gates
  • 74HC109 - Dual J-K Positive-Edge-Triggered Flip-Flops
  • 74HC11 - Triple 3-Input AND Gate
  • 74HC112 - Dual J-K Negative-Edge-Triggered Flip-Flops
  • 74HC123 - High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators
  • 74HC125 - Quadruple Buffers

Full PDF Text Transcription

Click to expand full text
SN54HC148, SN74HC148 SCLS109H – APRIL 2004 – REVISED MARCH 2022 SNx4HC148 8-Line to 3-Line Priority Encoders 1 Features • Wide operating voltage range of 2V to 6V • Outputs can drive up to 10 LSTTL loads • Low power consumption, 80-μA max ICC • Typical tpd = 16ns • ±4-mA output drive at 5V • Low input current of 1μA max • Encode eight data lines to 3-line binary (Octal) 2 Applications • N-Bit encoding • Code converters and generators 3 Description The SNx4HC148 is an 8-input priority encoder. Added input enable (EI) and output enable (EO) signals allow for cascading multiple stages without added external circuitry. PART NUMBER SN74HC148D SN74HC148N SN74HC148NS SN54HC148J SNJ54HC148FK Device Information(1) PACKAGE BODY SIZE (NOM) SOIC (16) 9.90 mm × 3.90 mm PDIP (16) 19.31 mm × 6.
