74HC123 High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators

74HC123 Description

Data sheet acquired from Harris Semiconductor SCHS142F September 1997 - Revised October 2003 CD54/74HC123, CD54/74HCT123, CD74HC423, CD74HCT423 High-.
The ’HC123, ’HCT123, CD74HC423 and CD74HCT423 are dual monostable multivibrators with resets.

74HC123 Features

* Overriding Reset Terminates Output Pulse
* Triggering From the Leading or Trailing Edge
* Q and Q Buffered Outputs
* Separate Resets
* Wide Range of Output-Pulse Widths
* Schmitt Trigger on Both A and B Inputs
* Fanout (Over Temperature Range

📥 Download Datasheet

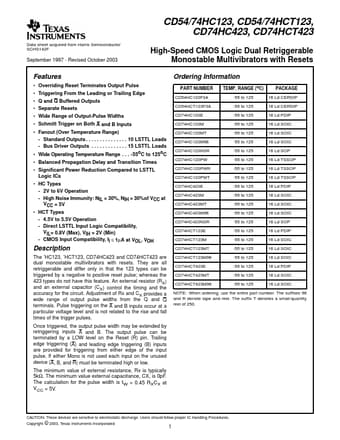

Preview of 74HC123 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74HC123
Manufacturer
Texas Instruments ↗
File Size
785.31 KB
Datasheet
74HC123-etcTI.pdf
Description
High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators
