CS005, Thickfilm Resistor

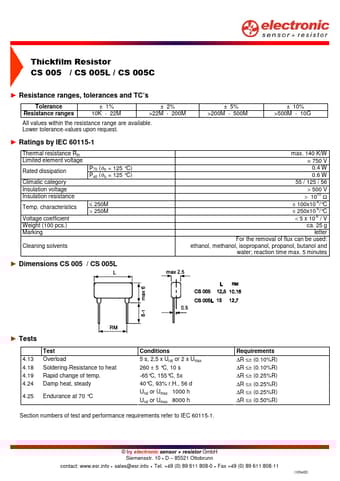

Thickfilm Resistor CS 005 / CS 005L / CS 005C Resistance ranges, tolerances and TC’s Tolerance Resistance ranges ± 1% 10K - 22M ± 2% >22M - 200M ± 5% >200M - 500M ± 10% >500M - 10G All values within the resistance range are available.

Lower tolerance-values upon request.

Ratings by IEC 60115-1 Thermal resistance Rth Limited element voltage Rated dissipation Climatic category Insulation voltage Insulation resistance Temp.

characteristics Voltage coefficient Weight (100 pcs.) Marki
