AS1324 DC/DC Step-Down Regulator

AS1324 Description

Datasheet AS1324 1.5MHz, 600mA, DC/DC Step-Down Regulator 1 General .
The AS1324 is a high-efficiency, constant-frequency synchronous buck converter available in adjustable- and fixed-voltage versions.

AS1324 Features

* ! High Efficiency: Up to 96% ! Output Current: 600mA ! Input Voltage Range: 2.7V to 5.5V ! Constant Frequency Operation: 1.5MHz ! Variable- and Fixed-Output Voltages ! No Schottky Diode Required ! Automatic Powersave Operation ! Low Quiescent Current: 30µA ! Internal Reference: 0.6V ! Shutdown Mode

AS1324 Applications

* The device is ideal for mobile communication devices, laptops and PDAs, ultra-low-power systems, threshold detectors/discriminators, telemetry and remote systems, medical instruments, or any other space-limited application with low power-consumption requirements. VIN = 2.7V to 5.5V CIN 10µF 4 3

📥 Download Datasheet

Preview of AS1324 PDF

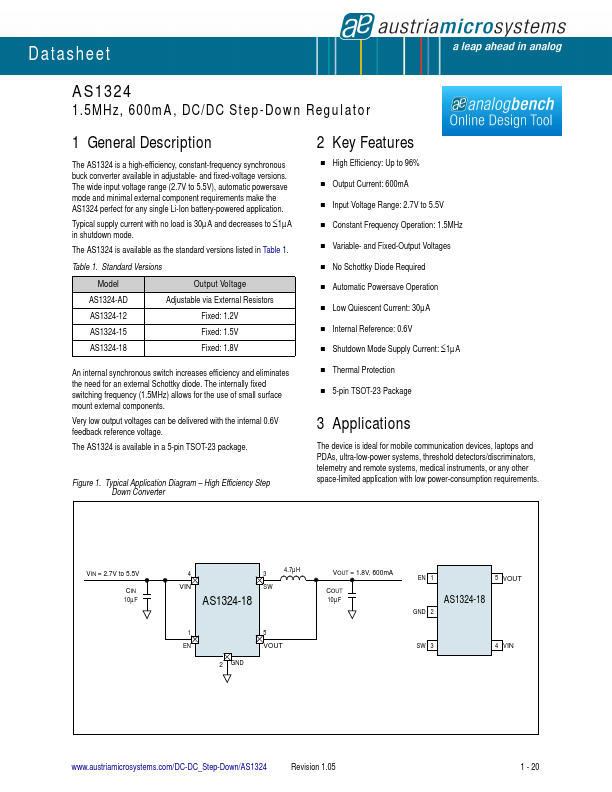

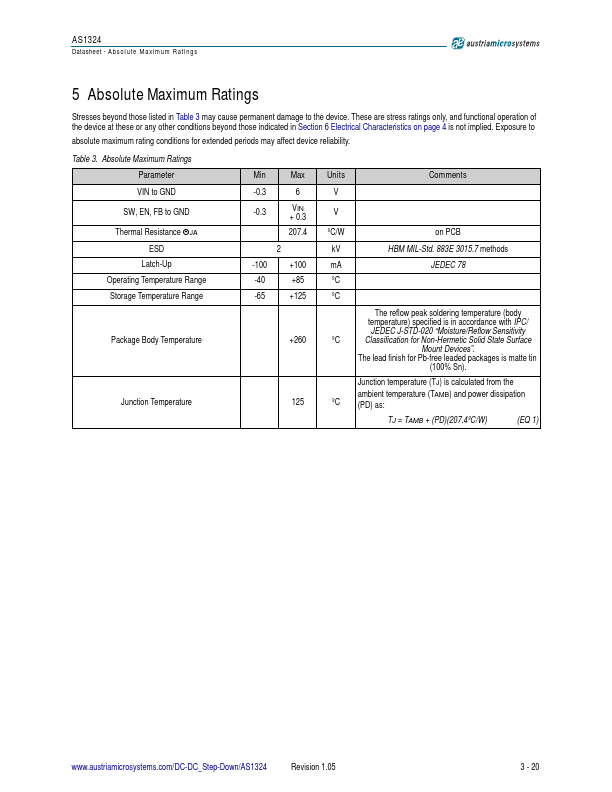

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS1324
Manufacturer
austriamicrosystems AG
File Size
970.91 KB
Datasheet
AS1324_austriamicrosystemsAG.pdf
Description
DC/DC Step-Down Regulator
