ZT232E, ZT202E - Low Power 5V 250kbps RS232 Transceivers

Zywyn

📥 Download Datasheet

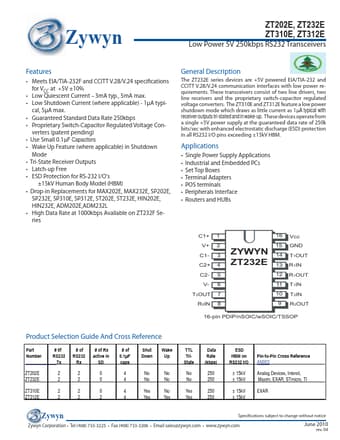

ZT232E Datasheet Preview — This datasheet PDF includes multiple part numbers: ZT232E, ZT202E. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZT232E, ZT202E
Manufacturer	Zywyn
File Size	1.28 MB
Description	Low Power 5V 250kbps RS232 Transceivers
Datasheet	ZT202E-Zywyn.pdf
Note	This datasheet PDF includes multiple part numbers: ZT232E, ZT202E. Please refer to the document for exact specifications by model.

ZT232E Product details

Description

The ZT232E series devices are +5V powered EIA/TIA-232 and CCITT V.28/V.24 communication interfaces with low power requirements.

Features

Meets EIA/TIA-232F and CCITT V.28/V.24 specifications for VCC at +5V ±10%.
Low Quiescent Current.
3mA typ. , 5mA max.
Low Shutdown Current (where applicable) - 1μA typi- cal, 5μA max.
Guaranteed Standard Data Rate 250kbps.
Proprietary Switch-Capacitor Regulated Voltage Con- verters (patent pending).
Use Small 0.1μF Capacitors.
Wake Up Feature (where applicable) in Shutdown Mode.
Tri-State Receiver Outputs.
