ZT202E - Low Power 5V 250kbps RS232 Transceivers

Description

The ZT232E series devices are +5V powered EIA/TIA-232 and CCITT V.28/V.24 communication interfaces with low power requirements.

These transceivers consist of two line drivers, two line receivers and the proprietary switch-capacitor regulated voltage converters.

Features

  • Meets EIA/TIA-232F and CCITT V.28/V.24 specifications for VCC at +5V ±10%.
  • Low Quiescent Current.
  • 3mA typ. , 5mA max.
  • Low Shutdown Current (where applicable) - 1μA typi- cal, 5μA max.
  • Guaranteed Standard Data Rate 250kbps.
  • Proprietary Switch-Capacitor Regulated Voltage Con- verters (patent pending).
  • Use Small 0.1μF Capacitors.
  • Wake Up Feature (where applicable) in Shutdown Mode.
  • Tri-State Receiver Outputs.

📥 Download Datasheet

Datasheet Details

Part number ZT202E
Manufacturer Zywyn
File Size 1.28 MB
Description Low Power 5V 250kbps RS232 Transceivers
Datasheet download datasheet ZT202E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZT202 Europe market universal remote control IC Zonter
ZT2046 4-WIRE RESISTIVE TOUCH SCREEN CONTROLLER ZillTek Technology
ZT2083 I2C Resistive Touch Screen Controller ZILLTEK
ZT2306 Li+ Charger Protection ZillTek
ZT2306A Li+ Charger Protection ZillTek

Other Datasheets by Zywyn

Part Number Description
ZT207E (ZT207E - ZT213E) Low Power 5V 250Kbps RS232 Transceivers
ZT207F (ZT207F - ZT213F) Low Power 5V 1000Kbps RS232 Transceivers
ZT208E Low Power 5V 250Kbps RS232 Transceivers
ZT208F (ZT207F - ZT213F) Low Power 5V 1000Kbps RS232 Transceivers
ZT211E (ZT207E - ZT213E) Low Power 5V 250Kbps RS232 Transceivers

Full PDF Text Transcription

Click to expand full text

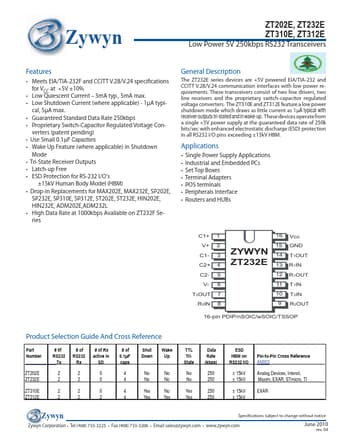

Zywyn Corporation Zywyn ZT202E/232E/310E/312E ZT202E, ZT232E ZT310E, ZT312E Low Power 5V 250kbps RS232 Transceivers Features • Meets EIA/TIA-232F and CCITT V.28/V.24 specifications for VCC at +5V ±10% • Low Quiescent Current – 3mA typ., 5mA max. • Low Shutdown Current (where applicable) - 1μA typi- cal, 5μA max. • Guaranteed Standard Data Rate 250kbps • Proprietary Switch-Capacitor Regulated Voltage Con- verters (patent pending) • Use Small 0.
