EGP30B - SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Product Overview

Zowie Technology

Part number	EGP30B
Manufacturer	Zowie Technology
File Size	48.57 KB
Description	SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet	EGP30B Datasheet
Note	This datasheet PDF includes multiple part numbers: EGP30B, EGP30A. Please refer to the document for exact specifications by model.

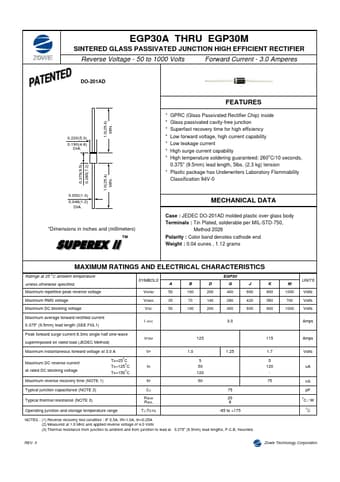

Additional preview pages of the EGP30B datasheet.

GPRC (Glass Passivated Rectifier Chip) inside.
Glass passivated cavity-free junction.
Superfast recovery time for high efficiency.
Low forward voltage, high current capability.
Low leakage current.
High surge current capability.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 0.375(9.5) 0.285(7.2) 1.0(25.4) MIN. 0.05.
