AZ9481 - 16 AMP LOW PROFILE POWER RELAY

Zettler

📥 Download Datasheet

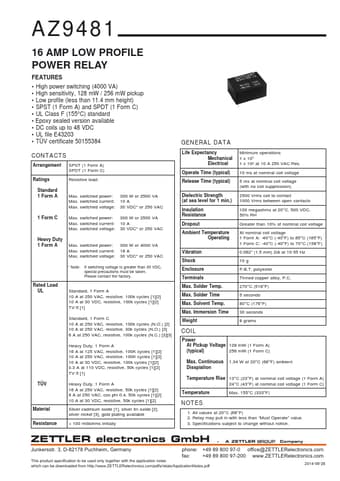

AZ9481 Datasheet Preview — Preview of AZ9481 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AZ9481
Manufacturer	Zettler
File Size	47.71 KB
Description	16 AMP LOW PROFILE POWER RELAY
Datasheet	AZ9481-Zettler.pdf

AZ9481 Product details

Features

High power switching (4000 VA).
High sensitivity, 128 mW / 256 mW pickup.
Low profile (less than 11.4 mm height).
SPST (1 Form A) and SPDT (1 Form C).
UL Class F (155°C) standard.
Epoxy sealed version available.
DC coils up to 48 VDC.
UL file E43203.
TÜV certificate 50155384.
