AZ948-1A-48D - 16 AMP LOW PROFILE POWER RELAY

📥 Download Datasheet

AZ948-1A-48D Datasheet Preview — Preview of AZ948-1A-48D PDF

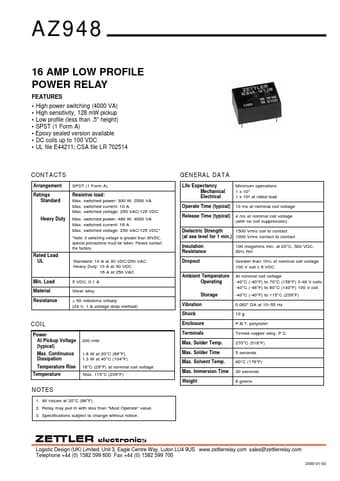

datasheet Preview Page 2

Datasheet Details

Part number	AZ948-1A-48D
Manufacturer	ETC
File Size	48.51 KB
Description	16 AMP LOW PROFILE POWER RELAY
Datasheet	AZ948-1A-48D_ETC.pdf

AZ948-1A-48D Product details

Features

High power switching (4000 VA) High sensitivity, 128 mW pickup Low profile (less than .5" height) SPST (1 Form A) Epoxy sealed version available DC coils up to 100 VDC UL file E44211; CSA file LR 702514.
