ZL38004 - Dedicated Voice Processor

Zarlink Semiconductor

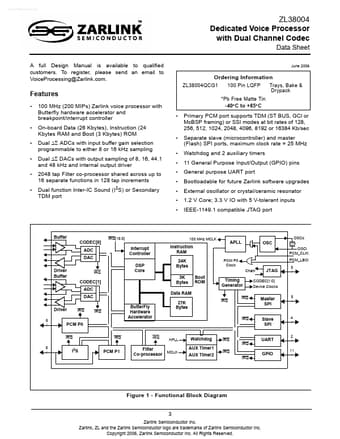

ZL38004 Datasheet Preview — Preview of ZL38004 PDF

Datasheet Details

Part number	ZL38004
Manufacturer	Zarlink Semiconductor
File Size	260.26 KB
Description	Dedicated Voice Processor
Datasheet	ZL38004_ZarlinkSemiconductor.pdf

ZL38004 Product details

Description

The ZL38004 is a hardware platform designed to support advanced acoustic echo canceller (with noise reduction) firmware applications available from Zarlink Semiconductor.

Features

100 MHz (200 MIPs) Zarlink voice processor with Butterfly hardware accelerator and breakpoint/interrupt controller On-board Data (26 Kbytes), Instruction (24 Kbytes RAM and Boot (3 Kbytes) ROM Dual ∆Σ ADCs with input buffer gain selection programmable to either 8 or 16 kHz sampling Dual ∆Σ DACs with output sampling of 8, 16, 44.1 and 48 kHz and internal output driver 2048 tap Filter co-processor shared across up to 16 separate functions in 128 tap increments Dual function Inter-IC Soun.
