HC2500S03 - Hybrid Coupler

HC2500S03 Description

HC2500S03 Hybrid Coupler 3 dB, 90o Rev B0 .
The HC2500S03 is a low profile, high performance 3dB hybrid coupler in a new easy to use, manufacturing friendly surface mount package.

HC2500S03 Features

* 2300-2700 MHz
* W-LAN & MMDS
* Low Insertion Loss
* Tight Amplitude Balance
* High Isolation
* Low VSWR
* Good Repeatability
* CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide
* Immersion gold, prevent surface oxidation & scratch
* RoHS Compliant

HC2500S03 Applications

* The HC2500S03 is particularly for balanced power and low noise amplifiers, plus signal designed distribution and other applications where low insertion loss and tight amplitude and phase balance is required. It can be used in power applications up to 20 Watts. Parts have been subjected to rigorous

📥 Download Datasheet

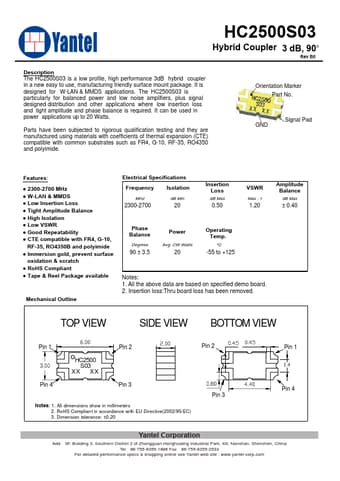

Preview of HC2500S03 PDF
