MUR6060PGTL Ultra-Fast Recovery Rectifier Diode

MUR6060PGTL Description

MUR6060PGTL RoHS COMPLIANT Ultra-Fast Recovery Rectifier Diodes .

MUR6060PGTL Features

* High frequency operation
* High surge forward current capability
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22

MUR6060PGTL Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-247AB Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B1

📥 Download Datasheet

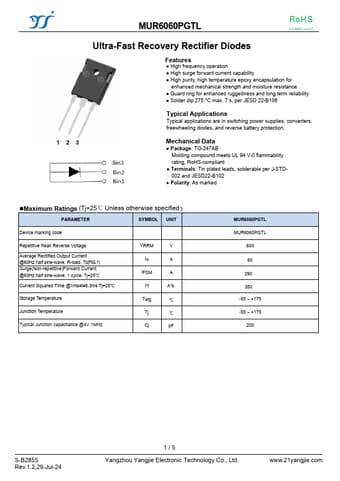

Preview of MUR6060PGTL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR6060PGTL
Manufacturer
Yangzhou Yangjie
File Size
228.68 KB
Datasheet
MUR6060PGTL-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Rectifier Diode
