MUR6020 - Ultra Fast Recovery Diodes

Features

  • International standard package JEDEC TO-247AC.
  • Planar passivated chips.
  • Very short recovery time.
  • Extremely low switching losses.
  • Low IRM-values.
  • Soft recovery behaviour.

📥 Download Datasheet

Datasheet Details

Part number MUR6020
Manufacturer Unknown Manufacturer
File Size 145.13 KB
Description Ultra Fast Recovery Diodes
Datasheet download datasheet MUR6020 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MUR6020 Ultra Fast Recovery Diodes Sirectifier
MUR6020 60A ULTRA FAST RECOVERY RECTIFIERS Digitron Semiconductors
MUR6020PT Ultra Fast Recovery Diodes Sirectifier
MUR6020PT 60 Amperes Dual Common Cathode Ultra Fast Recovery Rectifiers Thinki Semiconductor
MUR60100 Ultra Fast Recovery Diodes Sirectifier Semiconductors

Other Datasheets by Unknown Manufacturer

Part Number Description
MUR-420 MUR420
MUR2JGR 2.0A GLASS PASSIVATED ULTRA FAST RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

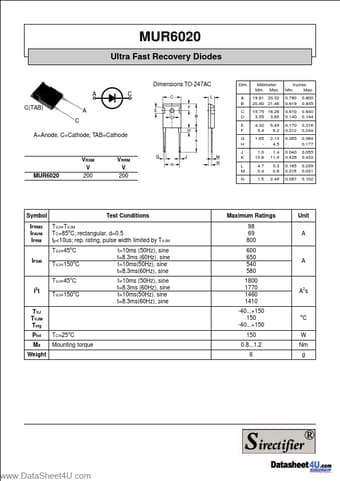

( DataSheet : www.DataSheet4U.com ) MUR6020 Ultra Fast Recovery Diodes Dimensions TO-247AC A C(TAB) C A=Anode, C=Cathode, TAB=Cathode A C Dim. A B C D E F G H J K L M N Millimeter Min. Max. 19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min. Max. 0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 MUR6020 VRSM V 200 VRRM V 200 Symbol IFRMS IFAVM IFRM Test Conditions TVJ=TVJM TC=85oC; rectangular, d=0.5 tp<10us; rep. rating, pulse width limited by TVJM TVJ=45oC t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.
