GBJ2508A, GBJ25005A Bridge Rectifier

GBJ2508A Description

GBJ25005A THRU GBJ2510A RoHS COMPLIANT Bridge Rectifiers .

GBJ2508A Features

* UL recognition, file #E230084
* Glass passivated chip junction
* Thin single in-line package
* High surge current capability

GBJ2508A Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data
* Package: 6KBJ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ2508A, GBJ25005A. Please refer to the document for exact specifications by model.

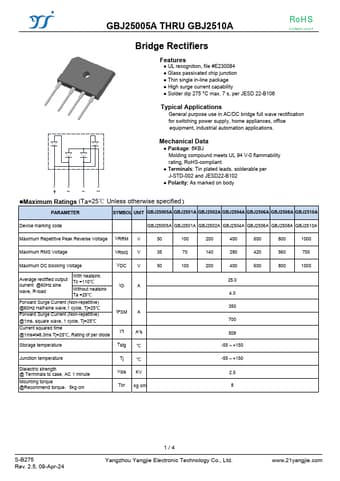

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBJ2508A, GBJ25005A
Manufacturer
Yangzhou Yangjie
File Size
222.19 KB
Datasheet
GBJ25005A-YangzhouYangjie.pdf
Description
Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: GBJ2508A, GBJ25005A.
Please refer to the document for exact specifications by model.
