GBJ25005-G Glass Passivated Bridge Rectifiers

GBJ25005-G Description

Glass Passivated Bridge Rectifiers Comchip SMD Diode Specialist GBJ25005-G Thru.GBJ2510-G Reverse Voltage: 50 to 1000V Forward Current: 25.0A RoHS .

GBJ25005-G Features

* - Rating to 1000V PRV. -Ideal for printed circuit board -Low forward voltage drop, high current capability. Φ0.134(3.4) Φ0.122(3.1) 1.193(30.3) 1.169(29.7) GBJ 0.118(3.00)
* 45° 0.189(4.8) 0.173(4.4) 0.150(3.8) 0.134(3.4) Φ0.134(3.4) Φ0.122(3.1) 0.114(2.9) 0.098(2.5) 0.198 MAX (5.1) 0.800(20.

📥 Download Datasheet

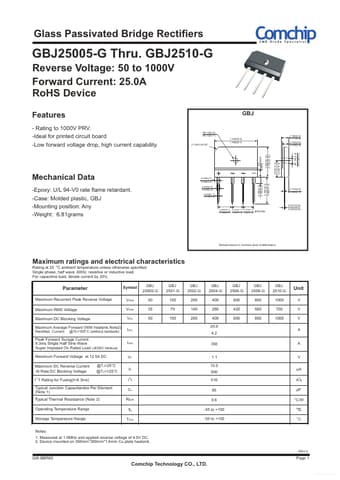

Preview of GBJ25005-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBJ25005-G
Manufacturer
Comchip
File Size
89.88 KB
Datasheet
GBJ25005-G_Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
