GBJ20005 - Glass Passivated Bridge Rectifiers

Features

  • - Rating to 1000V PRV - Ideal for printed circuit board - Low forward voltage drop,high current capability - Reliable low cost construction utilizing molded plastic technique results in inexpensive product - The plastic material has UL flammability classification 94V-0 ? .134(3.4) ? .122(3.1) .118(3.0).
  • 45° .106(2.7) .096(2.3) + .094(2.4) .078(2.0) .043(1.1) .035(0.9) GBJ 1.193(30.3) 1.169(29.7) ~~_ .165(4.2) .142(3.6) .708(18.0) .669(17.0) .198 (5.1) MAX .800(20.3) .776(19.7) .44.

📥 Download Datasheet

Datasheet Details

Part number GBJ20005
Manufacturer Comchip
File Size 111.60 KB
Description Glass Passivated Bridge Rectifiers
Datasheet download datasheet GBJ20005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ20005 20A GLASS PASSIVATED BRIDGE RECTIFIER Diodes Incorporated
GBJ20005 20 Amp Glass Passivated Bridge Rectifier Micro Commercial Components
GBJ20005 Silicon Bridge Rectifiers GME
GBJ20005 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS Kingtronics
GBJ20005 Single-Phase 20.0A Glass Passivated Bridge Rectifier Sangdest Microelectronics

Other Datasheets by Comchip

Part Number Description
GBJ2001 Glass Passivated Bridge Rectifiers
GBJ2002 Glass Passivated Bridge Rectifiers
GBJ2004 Glass Passivated Bridge Rectifiers
GBJ2006 Glass Passivated Bridge Rectifiers
GBJ2008 Glass Passivated Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

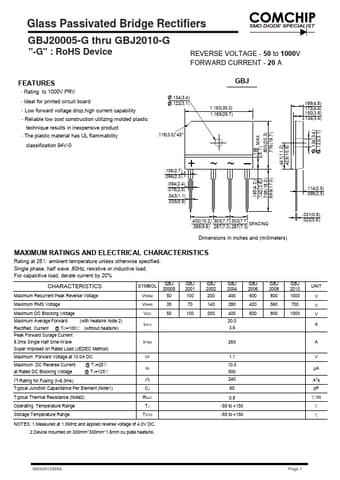

Glass Passivated Bridge Rectifiers GBJ20005-G thru GBJ2010-G "-G" : RoHS Device REVERSE VOLTAGE - 50 to 1000V FORWARD CURRENT - 20 A FEATURES - Rating to 1000V PRV - Ideal for printed circuit board - Low forward voltage drop,high current capability - Reliable low cost construction utilizing molded plastic technique results in inexpensive product - The plastic material has UL flammability classification 94V-0 ? .134(3.4) ? .122(3.1) .118(3.0)*45° .106(2.7) .096(2.3) + .094(2.4) .078(2.0) .043(1.1) .035(0.9) GBJ 1.193(30.3) 1.169(29.7) ~~_ .165(4.2) .142(3.6) .708(18.0) .669(17.0) .198 (5.1) MAX .800(20.3) .776(19.7) .441(11.2) .425(10.8) ? .134(3.4) ? .122(3.1) .189(4.8) .173(4.4) .150(3.8) .134(3.4) .114(2.9) .098(2.5) .402(10.2) .386(9.8) .303(7.7).303(7.7) .287(7.3).
