ISOEM1001-Ux-Px-Ox, ISOEM1001 - electromagnetic isolation mixed IC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISOEM1001-Ux-Px-Ox, ISOEM1001. Please refer to the document for exact specifications by model.

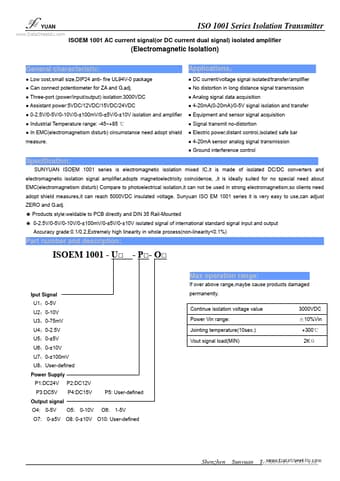

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ISOEM1001-Ux-Px-Ox, ISOEM1001
Manufacturer YUAN
File Size 249.92 KB
Description electromagnetic isolation mixed IC
Datasheet download datasheet ISOEM1001_YUAN.pdf
Note This datasheet PDF includes multiple part numbers: ISOEM1001-Ux-Px-Ox, ISOEM1001.
Please refer to the document for exact specifications by model.

ISOEM1001-Ux-Px-Ox Product details

Description

ISOEM 1001 - U - P - O Max operation range: If over above range,maybe cause products damaged Iput Signal U1：0-5V U2：0-10V U3：0-75mV U4：0-2.5V U5：0-±5V U6：0-±10V U7：0-±100mV U8：User-defined Power Supply P1:DC24V P3:DC5V Output signal O4: 0-5V O5: 0-10V O6: 1-5V O7: 0-±5V O8: 0-±10V O10: User-defined P2:DC12V P4:DC15V P5: User-defined permanently.Continue isolation voltage value Power Vin range: Jointing temperature(10sec.) Vout signal load(MIN) 3000VDC ±10%Vin +300℃ 2
