ISOEM - Loop Powered Signal Isolated Conditioner

Shenzhen Sunyuan

📥 Download Datasheet

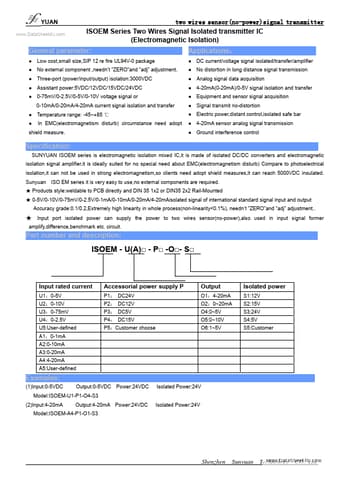

ISOEM Datasheet Preview — Preview of ISOEM PDF

Datasheet Details

Part number	ISOEM
Manufacturer	Shenzhen Sunyuan
File Size	471.20 KB
Description	Loop Powered Signal Isolated Conditioner
Datasheet	ISOEM_ShenzhenSunyuan.pdf

ISOEM Product details

Description

ISOEM - U(A) - P -O - S Input rated current U1：0-5V U2：0-10V U3：0-75mV U4：0-2.5V U5:User-defined A1：0-1mA A2:0-10mA A3:0-20mA A4:4-20mA A5:User-defined Accessorial power supply P P1： DC24V P2： DC12V P3： DC5V P4： DC15V P5：Customer choose Output O1：4-20mA O2：0~20mA O4:0~5V O5:0~10V O6:1~5V Isolated power S1:12V S2:15V S3:24V S4:5V S5:Customer Examples: (1)Input:0-5VDC (2)Input:4-20mA Output:0-5VDC Power:24VDC Isolated Power:24V Isolated Power:24V Model:ISO
