Datasheet Details
| Part number | XP60SE150DDT8 |
|---|---|
| Manufacturer | YAGEO |
| File Size | 167.81 KB |
| Description | N-CHANNEL ENHANCEMENT MODE POWER MOSFET |
| Datasheet |
 XP60SE150DDT8-YAGEO.pdf
|
| Part number | XP60SE150DDT8 |
|---|---|
| Manufacturer | YAGEO |
| File Size | 167.81 KB |
| Description | N-CHANNEL ENHANCEMENT MODE POWER MOSFET |
| Datasheet |
XP60SE150DDT8-YAGEO.pdf
|

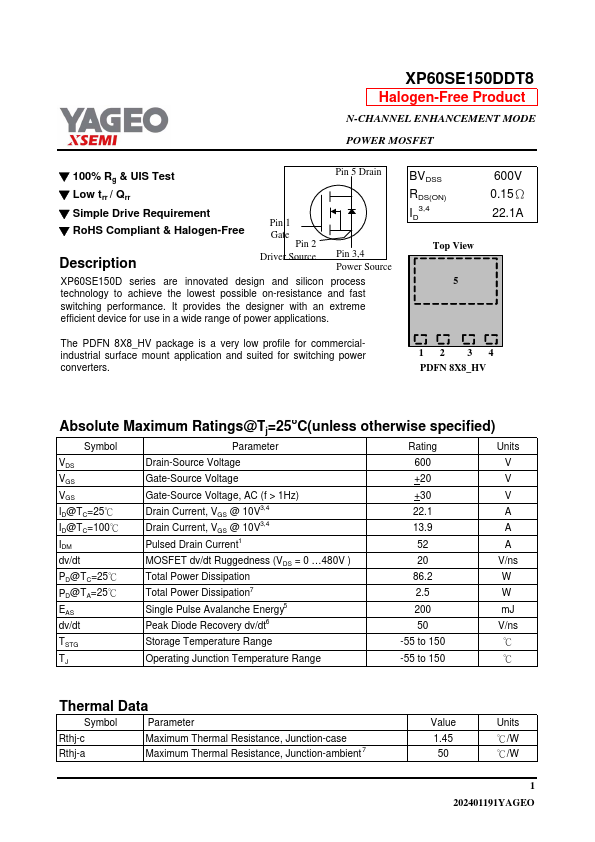

Pin 1 Gate Pin 2 Driver Source Pin 3,4 Power Source XP60SE150D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.BVDSS RDS(ON) ID3,4 Top View 5 600V 0.15Ω 22.1A The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters.1
