XP4578GH - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Product Overview

📥 Download Datasheet

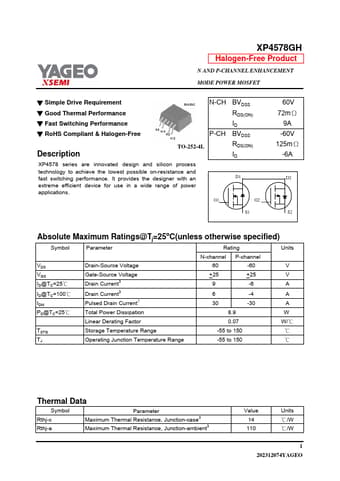

Datasheet preview – XP4578GH

Datasheet Details

Part number XP4578GH
Manufacturer YAGEO
File Size 210.90 KB
Description N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet XP4578GH Datasheet

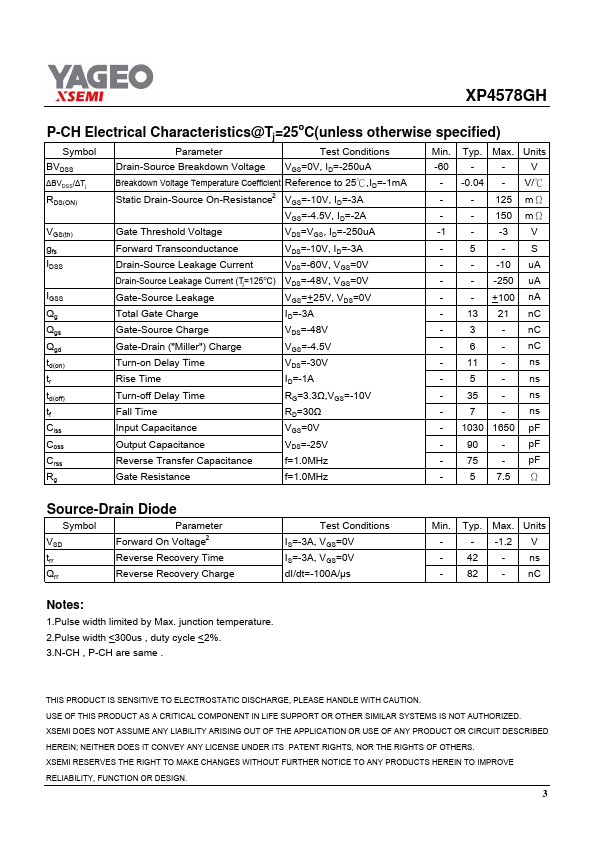

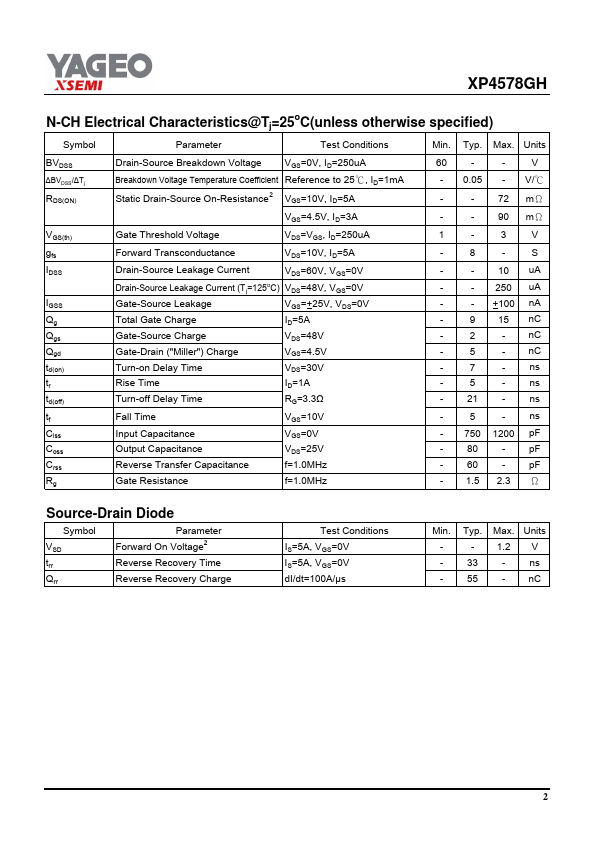

Additional preview pages of the XP4578GH datasheet.

Product details

Description

TO-252-4L XP4578 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 60V 72mΩ 9A -60V 125mΩ -6A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units N-channel P-channel VDS VGS ID@TC=25℃ ID@TC=100℃
