XP4525GEH - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Product Overview

📥 Download Datasheet

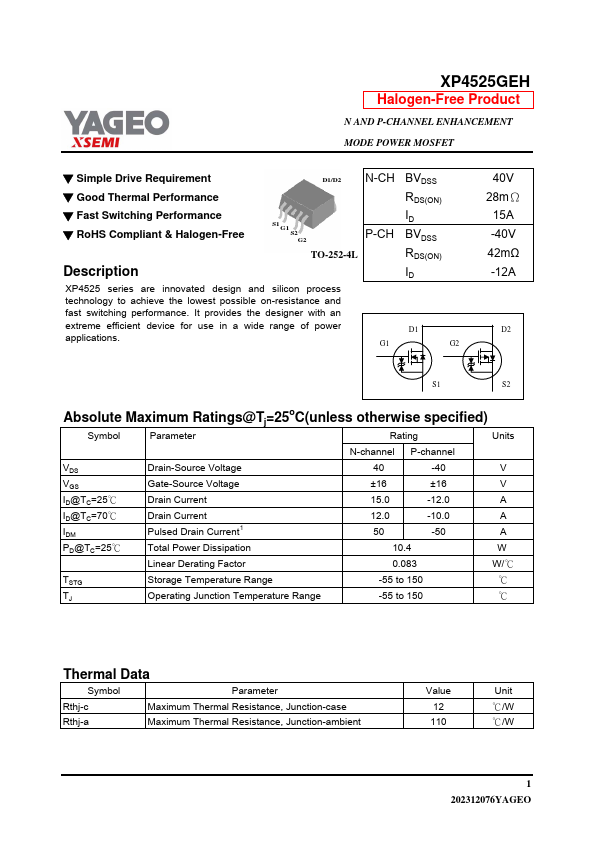

Datasheet preview – XP4525GEH

Datasheet Details

Part number XP4525GEH
Manufacturer YAGEO
File Size 209.15 KB
Description N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet XP4525GEH Datasheet

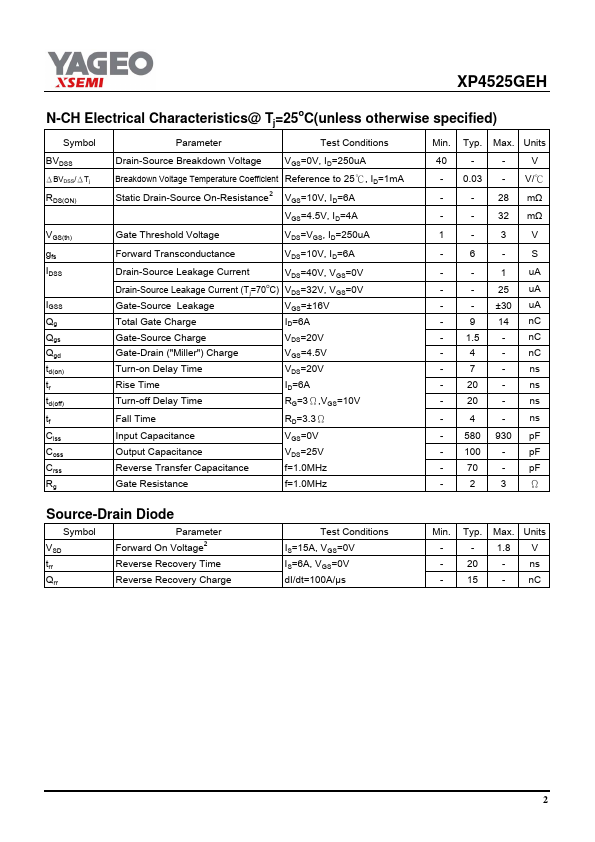

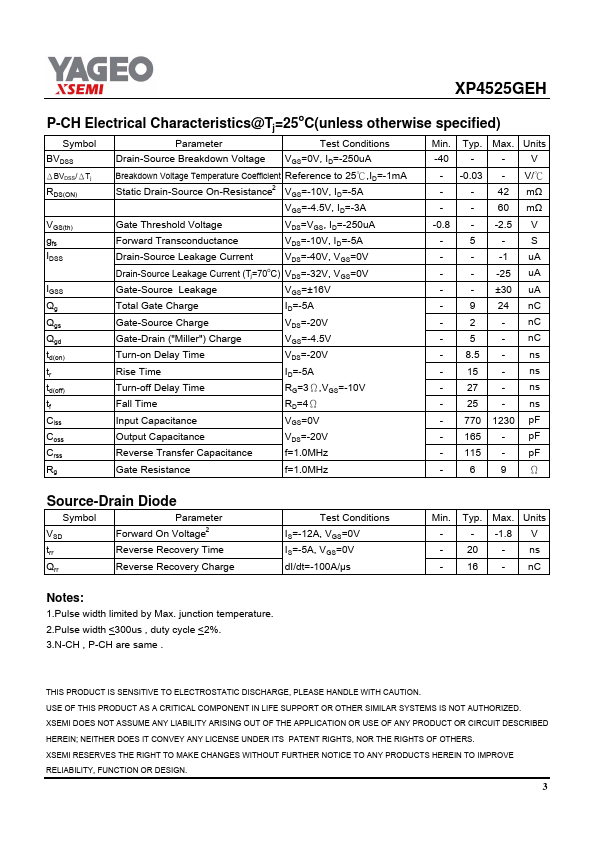

Additional preview pages of the XP4525GEH datasheet.

Product details

Description

TO-252-4L XP4525 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 40V 28mΩ 15A -40V 42mΩ -12A D2 S1 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units N-channel P-channel VDS VGS ID@TC=25℃ ID@TC=70℃ IDM PD@TC=
