XP3N045EN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3N045EN Description

XP3N045EN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Lower Gate Charge ▼ Fast Switching Performance.
XP3N045 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP3N045EN Applications

* The SOT-23S package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID G 30V 45mΩ 4.3A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS

📥 Download Datasheet

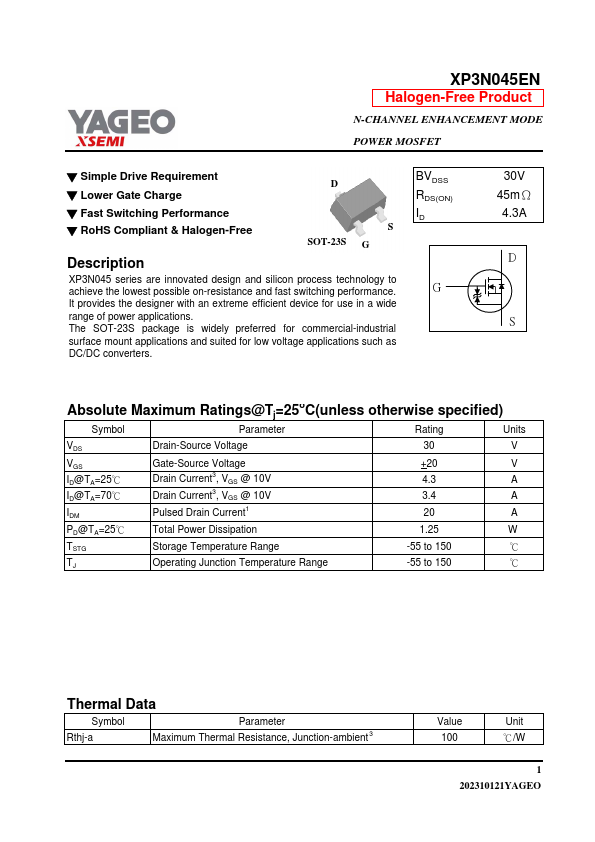

Preview of XP3N045EN PDF

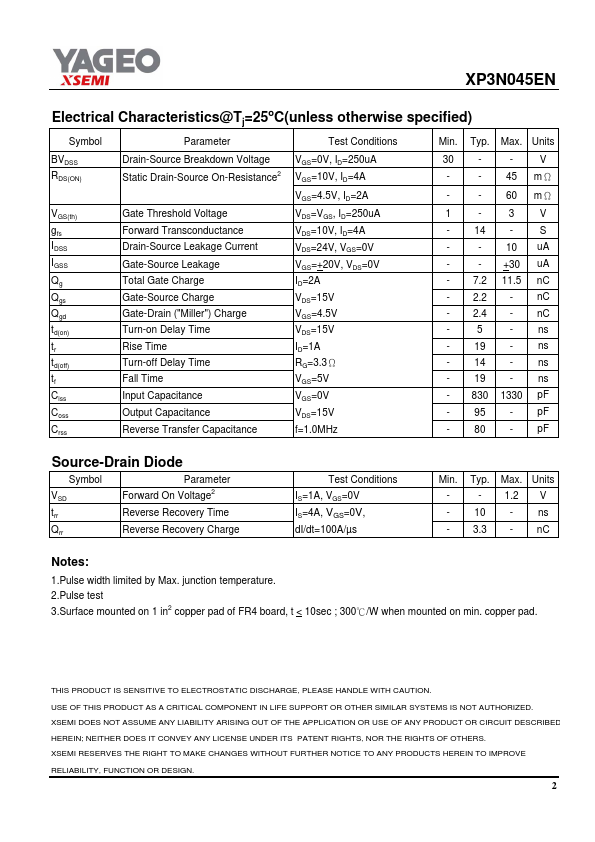

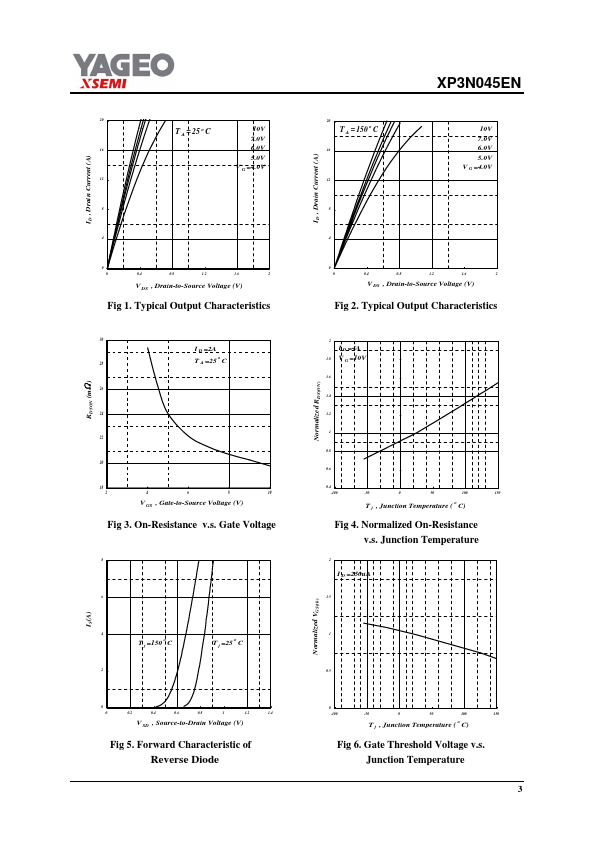

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP3N045EN
Manufacturer
YAGEO
File Size
153.96 KB
Datasheet
XP3N045EN-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
