XP3N020YT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3N020YT Description

XP3N020YT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Size & Low RDS(ON) ▼ RoHS Compliant & .
XP3N020 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP3N020YT Applications

* The PMPAK ® 3 x 3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) 30V 20mΩ D D D D S S S G PMPAK® 3 x 3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified

📥 Download Datasheet

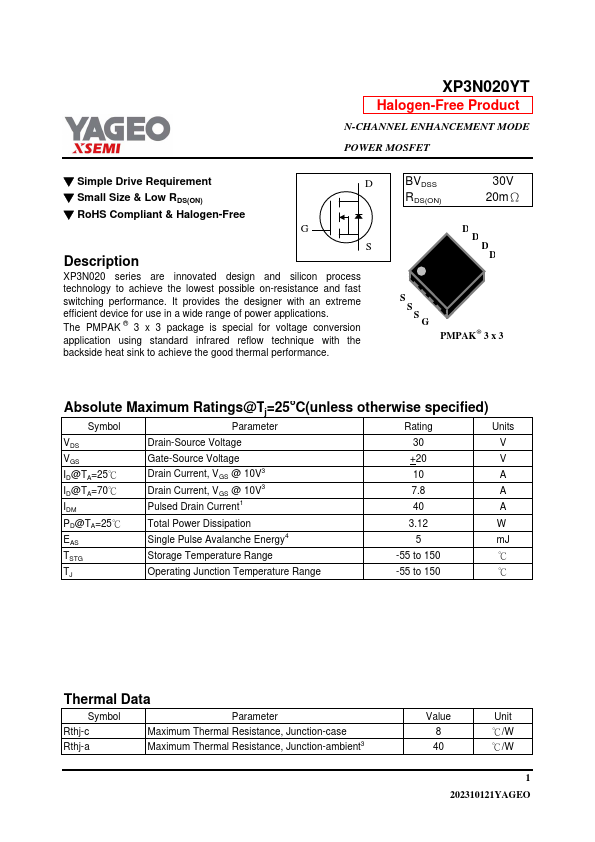

Preview of XP3N020YT PDF

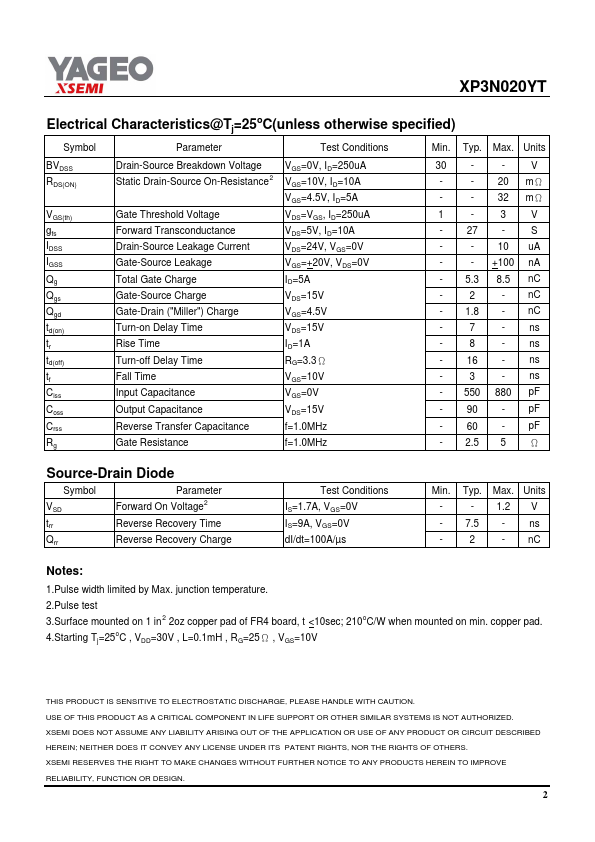

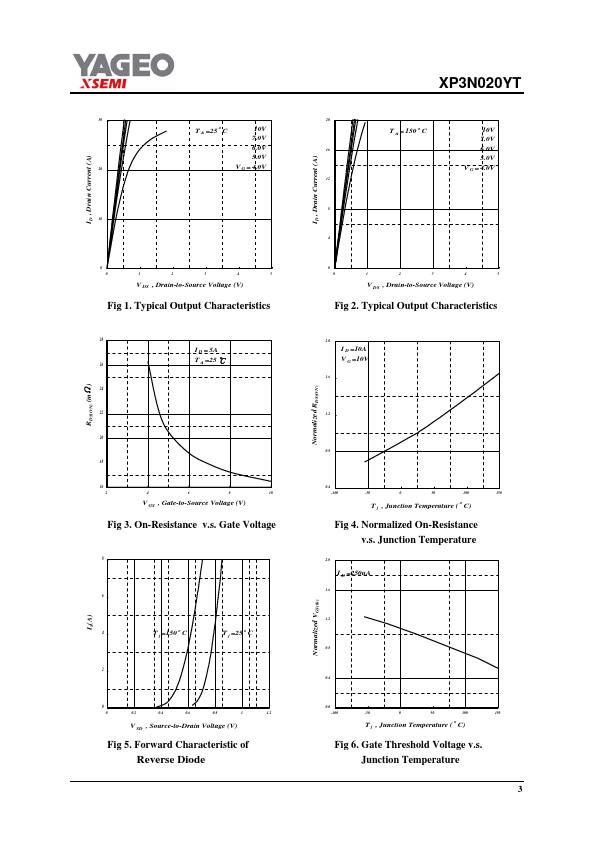

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP3N020YT
Manufacturer
YAGEO
File Size
415.50 KB
Datasheet
XP3N020YT-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
