SP25N135T Trench-FS IGBT

SP25N135T Description

Xiner 1350V，25A，Trench-FS IGBT SP25N135T .

SP25N135T Features

* Advanced Trench+FS (Field Stop) IGBT technology
* Low Collector-Emitter Saturation voltage, typical data is 1.9V @ 25A.
* Easy parallel switching capability due to positive Temperature coefficient in Vce.
* 10uS short-circuit
* Fast switching
* High input impedance
* Pb

SP25N135T Applications

* Power switch circuit of induction cooker. TO3PN Symbol V (BR)CES V CE(sat) V GE(th) VF I GES I GESR I CES Electrical characteristics(TJ = 25°C unless otherwise noted) Parameter Collector - Emitter breakdown voltage Collector-Emitter Saturation voltage Gate threshold voltage Diode Forward v

📥 Download Datasheet

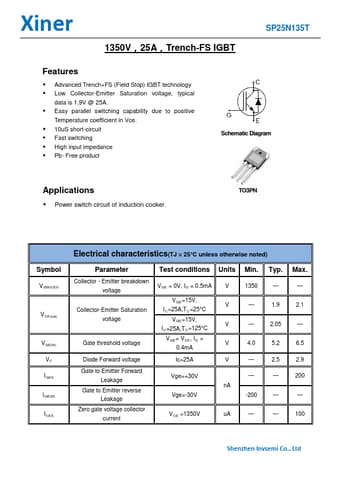

Preview of SP25N135T PDF
