SP2525-2EN +3.0V to +5.5V USB Power Control Switch

SP2525-2EN Description

® SP2525 +3.0V to +5.5V USB Power Control Switch s Compliant to USB Specifications s +3.0V to +5.5V Input Voltage Range s Open Drain Error Flag Outp.
The SP2525 device is a single +3.

SP2525-2EN Applications

* The SP2525 device has low on-resistance (80mΩ typical) and can supply 500mA minimum. The fault currents are limited to 2.0A typical and the flag output pin is available to indicate fault conditions to the USB controller. The 1ms soft start of the SP2525 device will eliminate any momentary voltage d

📥 Download Datasheet

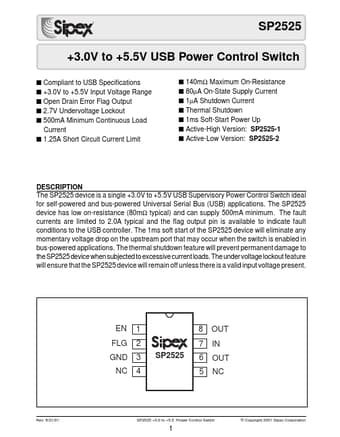

Preview of SP2525-2EN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP2525-2EN
Manufacturer
Sipex
File Size
177.34 KB
Datasheet
SP2525-2EN_SipexCorporation.pdf
Description
+3.0V to +5.5V USB Power Control Switch
