SP2525NUTG - 30A Diode Array

Description

The SP2525NUTG is a low-capacitance, TVS Diode Array designed to provide protection against ESD (electrostatic discharge), CDE (cable discharge events), EFT (electrical fast transients), and lightning induced surges for highspeed, differential data lines.

Features

  • ESD, IEC 61000-4-2, ±30kV contact, ±30kV air.
  • EFT, IEC 61000-4-4, 40A (5/50ns).
  • Lightning, IEC 610004-5 2nd edition, 30A (tP=8/20μs).
  • Low capacitance of 1.7pF@0V (TYP).
  • Low leakage current of 1nA (TYP) at 2.5V.
  • Low operating and clamping voltage.
  • μDFN-10 package is optimized for high-speed data line routing.
  • Provides protection for two differential data pairs (4 channels) up to 30A.
  • Halogen free, Lead free and RoH.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SP2525 +3.0V to +5.5V USB Power Control Switch Sipex
SP2525-1EN +3.0V to +5.5V USB Power Control Switch Sipex
SP2525-2EN +3.0V to +5.5V USB Power Control Switch Sipex
SP2525A Single Channel USB Power Distribution Switch Exar
SP2525A USB High-Side Power Switch Sipex

Other Datasheets by Littelfuse

Part Number Description
SP2555NUTG 2.5V 45A Diode Array
SP2574NUTG 2.5V 40A Diode Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

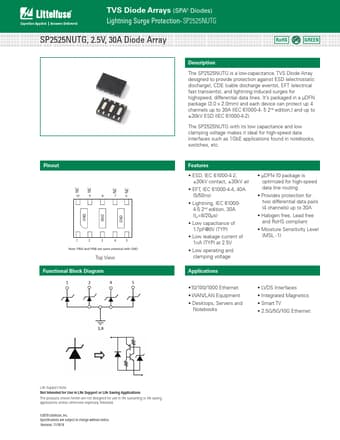

TVS Diode Arrays (SPA®®Diodes) Lightning Surge Protection- SSPP23532854NNUUTTGG SP2525NUTG, 2.5V, 30A Diode Array RoHS Pb GREEN NC GND NC GND NC GND NC Pinout 10 9 8 7 6 1 2 3 45 Note: PIN3 and PIN8 are same potential with GND Top View Functional Block Diagram Description The SP2525NUTG is a low-capacitance, TVS Diode Array designed to provide protection against ESD (electrostatic discharge), CDE (cable discharge events), EFT (electrical fast transients), and lightning induced surges for highspeed, differential data lines. It’s packaged in a μDFN package (3.0 x 2.0mm) and each device can protect up 4 channels up to 30A (IEC 61000-4- 5 2nd edition,) and up to ±30kV ESD (IEC 61000-4-2).
