X20C17 - High Speed AUTOSTORE NOVRAM

Datasheet Summary

Description

The Xicor X20C17 is a 2K x 8 NOVRAM featuring a highspeed static RAM overlaid bit-for-bit with a nonvolatile electrically erasable PROM (E 2 PROM) and the AUTOSTORE feature which automatically saves the RAM contents to E2PROM at power-down.

Xicor

📥 Download Datasheet

Datasheet Details

Part number	X20C17
Manufacturer	Xicor
File Size	47.49 KB
Description	High Speed AUTOSTORE NOVRAM
Datasheet	X20C17 Datasheet

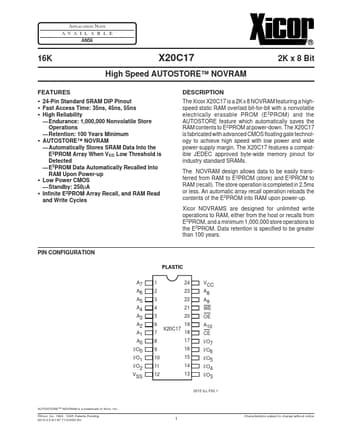

Additional preview pages of the X20C17 datasheet.

📁 Similar Datasheet

X200FG - AXIAL LEADED HERMETICALLY SEALED (VMI)
X200UFG - Spice Model (VMI)
X2010 - (X2010 / X2011) FM Narrow Band Transceiver Modules (rfsolutions)
X2011 - (X2010 / X2011) FM Narrow Band Transceiver Modules (rfsolutions)
X20FF3 - Spice Model (VMI)

Other Datasheets by Xicor

X20C16 - High Speed AUTOSTORE NOVRAM
X20C04 - Nonvolatile Static RAM
X20C05 - High Speed AUTOSTORE NOVRAM
X20CZ16 - High Speed NOVRAM
X2004 - Nonvolatile Static RAM
X2004I - Nonvolatile Static RAM

Full PDF Text Transcription

Click to expand full text

APPLICATION NOTE A V A I L A B L E X20C17 16K AN56 X20C17 High Speed AUTOSTORE™ NOVRAM 2K x 8 Bit FEATURES DESCRIPTION The Xicor X20C17 is a 2K x 8 NOVRAM featuring a highspeed static RAM overlaid bit-for-bit with a nonvolatile electrically erasable PROM (E 2 PROM) and the AUTOSTORE feature which automatically saves the RAM contents to E2PROM at power-down. The X20C17 is fabricated with advanced CMOS floating gate technology to achieve high speed with low power and wide power-supply margin. The X20C17 features a compatible JEDEC approved byte-wide memory pinout for industry standard SRAMs. The NOVRAM design allows data to be easily transferred from RAM to E2PROM (store) and E2PROM to RAM (recall). The store operation is completed in 2.5ms or less.

Published: Apr 16, 2005 |
