X2011 - (X2010 / X2011) FM Narrow Band Transceiver Modules

Download the X2011 datasheet PDF (X2010 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (x2010 / x2011) fm narrow band transceiver modules.

Description

The X2010 radio transceiver module was designed to provide reliable wireless operation at moderate data rates for use throughout the world.

Features

  • Operation on 434.075, 868.40 and 914.5 MHz.
  • X2011 version includes integrated pcb loop antenna (434 & 868 MHz versions).
  • Double RF filtering = High Reliability RF Link Data rates to 20 kbps (Wide-band 64 kbps version available to order) -112 dBm receiver sensitivity (434 version) CD and RSSI outputs Crystal stabilised accurate RF, hence narrower BW filter utilised Results in over 300m range EN 300.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (X2010_rfsolutions.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number X2011
Manufacturer rfsolutions
File Size 83.80 KB
Description (X2010 / X2011) FM Narrow Band Transceiver Modules
Datasheet download datasheet X2011 Datasheet

📁 Similar Datasheet

  • X2004 - Nonvolatile Static RAM (Xicor)
  • X2004I - Nonvolatile Static RAM (Xicor)
  • X200FG - AXIAL LEADED HERMETICALLY SEALED (VMI)
  • X200UFG - Spice Model (VMI)
  • X20C04 - Nonvolatile Static RAM (Xicor)
  • X20C05 - High Speed AUTOSTORE NOVRAM (Xicor)
  • X20C16 - High Speed AUTOSTORE NOVRAM (Xicor)
  • X20C17 - High Speed AUTOSTORE NOVRAM (Xicor)
  • X20CZ16 - High Speed NOVRAM (Xicor)
  • X20FF3 - Spice Model (VMI)
Other Datasheets by rfsolutions
  • X2010 - (X2010 / X2011) FM Narrow Band Transceiver Modules

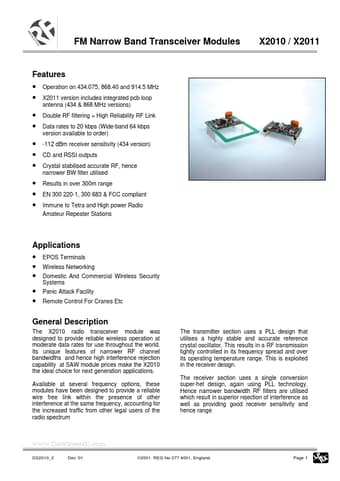

Full PDF Text Transcription

Click to expand full text
FM Narrow Band Transceiver Modules X2010 / X2011 Features • Operation on 434.075, 868.40 and 914.
