XL4002 - 2A 52KHz 40V Buck Li Battery Charger

XLSEMI

XL4002 Datasheet Preview — Preview of XL4002 PDF

Datasheet Details

Part number	XL4002
Manufacturer	XLSEMI
File Size	151.44 KB
Description	2A 52KHz 40V Buck Li Battery Charger
Datasheet	XL4002-XLSEMI.pdf

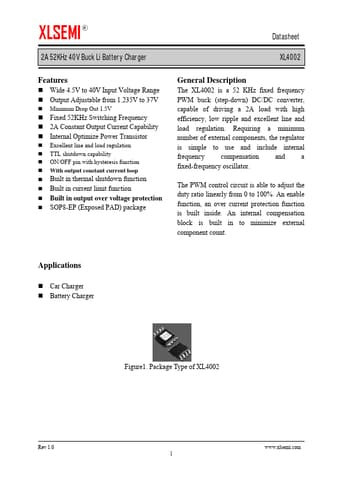

XL4002 Product details

Description

The XL4002 is a 52 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency, low ripple and excellent line and load regulation.

Features

Wide 4.5V to 40V Input Voltage Range.
Output Adjustable from 1.235V to 37V.
Minimum Drop Out 1.5V.
Fixed 52KHz Switching Frequency.
2A Constant Output Current Capability.
Internal Optimize Power Transistor.
Excellent line and load regulation.
TTL shutdown capability.
ON/OFF pin with hysteresis function.
With output constant current loop.
Built in thermal shutdown function.
Built in curren.
